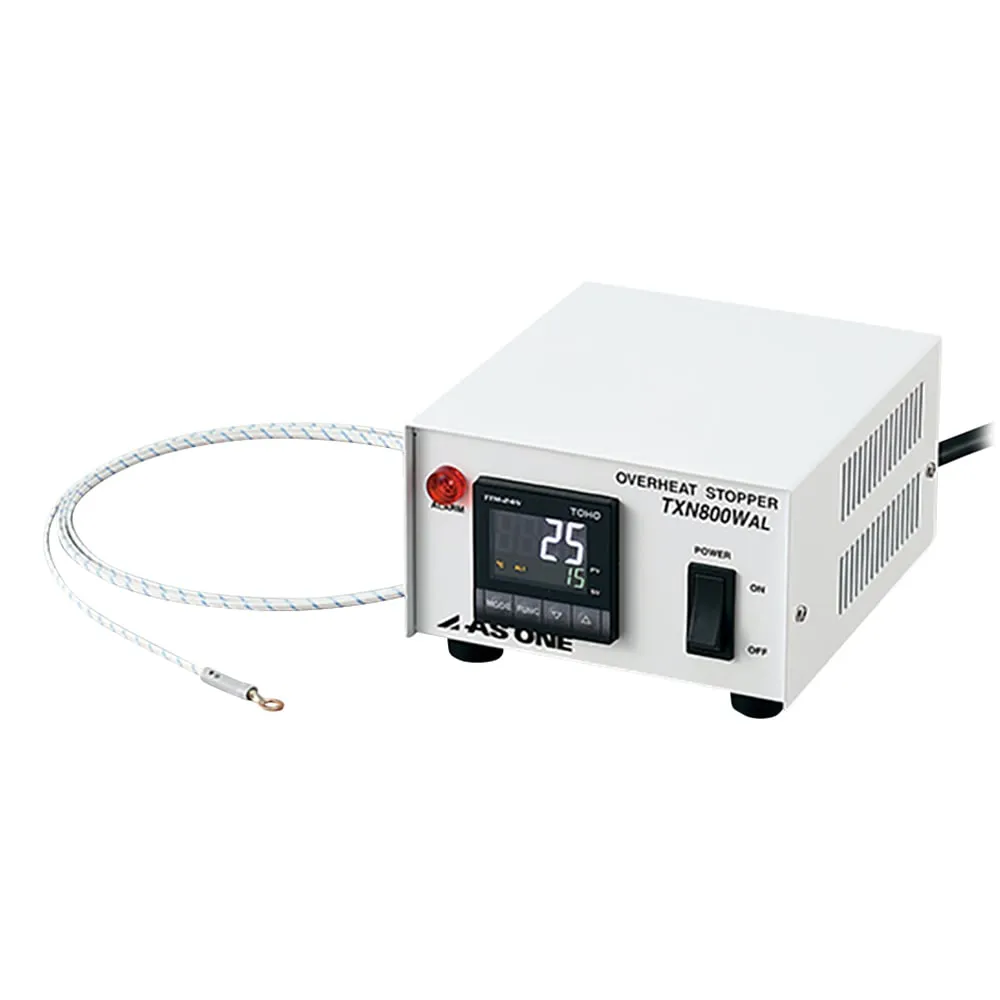

3-6824-01 Overtemperature Control Device (With Output for Alert) TXN800WAL
Product Description
Product Model: 3-6824-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6824-01
Product Brand: AS ONE Corporation
Features
- Notifies the surrounding area of a temperature abnormality.
- Not only forcibly turns off the temperature abnormality, but also outputs power for alert.
- The alert output is 100V/1A, and can be combined with a warning light, buzzer, or other various devices.
- If a sensor with a high heat resistance is ***d separately, the temperature can be controlled up to 1000°C.
Spec
- Model number: TXN800WAL (body)
- Specification: 130 x 160 x 84mm
- Power supply: 100VAC 50/60Hz
- Connection capacity: AC100V MAX 15A (including output for alert)
- Output for alert: 100V MAX 1A
- Temperature control system: Main control ON/OFF
- Output control system: Relay contact output
- Safety mechanism 15A f***
- Power cord: About 1.8m (3P plug)
- Weight: Approx 1.5kg
- Temperature display precision: +/-2℃ or instruction value +/- (0.3% + 1 digit), whichever is larger
- Sensor type: K class thermocouple
- Setting temperature: -100 to +1000℃
- Setting system: UP/DOWN key
- Connection terminal: Control output/3P outlet, Alarm Output, sensor input /M3.5Y terminal block
- Accessories: K class thermocouple round terminal specification (capable for 180℃), Cable length: Approx 2m
- *Demonstration equipment is available.
- *Included K class thermocouple sensor is standard type. Please prepare sensor capable for higher temperature separately.
