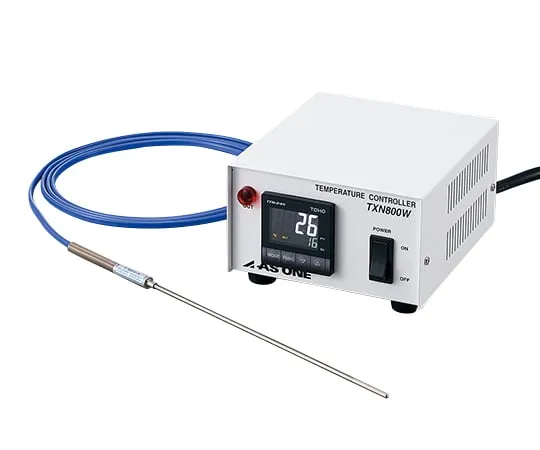

3-6768-01 Digital Temperature Controller (With Output for Alert) TXN800W
Product Description
Product Model: 3-6768-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6768-01
Product Brand: AS ONE Corporation
Features
- Generalizability has been added to 100 V alert output.
- An output terminal for alerts has been provided for general temperature regulators.
- The alert output is 100 V/1 A, and various combinations such as warning light and buzzer are possible.
- Temperature control and alarm control can be set, and the alarm output is turned on when the alarm setting is reached.
- The temperature control method is PID control, which enables high precision temperature control.
- In the double component of the SSR and the relay, if the SSR fails, the relay circuit interrupts the continuous energization.
- The OUT lamp shows the current output status at a glance.
Spec
- Model number: TXN800W
- Specification: 130 x 160 x 84mm
- Power supply: 100VAC 50/60Hz
- Connection capacity: AC100V MAX 15A (including output for alert)
- Temperature control system: PID control (with auto-tuning)
- Output control system: Voltage output by SSR
- Safety mechanism Double component of SSR and relay, 15A f***
- Power cord: About 1.8m (3P plug)
- Weight: Approx 1.5kg
- Temperature display precision: +/-2℃ or instruction value +/- (0.3% + 1 digit), whichever is larger
- Sensor type: K class thermocouple
- Setting temperature: -100 to +1000℃
- Setting system: UP/DOWN key
- Timer type: Autostart, auto-stop, SV start
- Timer setting available time: 1 - 99 hours 59 minutes
- Connection terminal: Control output/3P outlet, Alarm Output, sensor input /M3.5Y terminal block
- Accessories: Sheath type K thermocouple sensor (0 - 750℃)
- *As included K class thermocouple sensor is the type of standard, Please prepare sensor capable for higher temperature separately.
