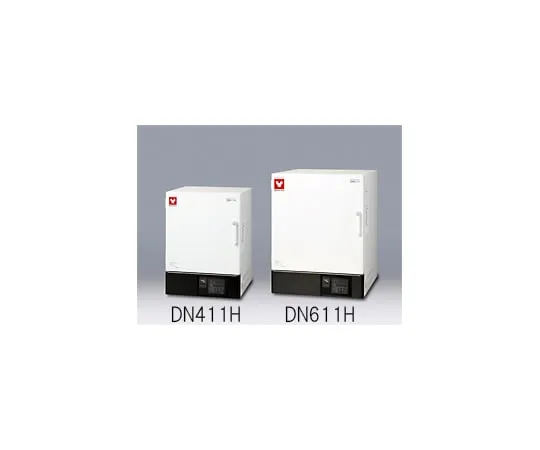

61-9660-20 Blast Temperature Incubator DN411H

model: 61-9660-20
brand: Yamato Scientific Co., Ltd.

Product Description

Product Model: 61-9660-20Product Brand: Yamato Scientif […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-9660-20
Product Brand: Yamato Scientific Co., Ltd.

Features

  • Operability/Function
  • Heat resistance testing and heat treatment at high temperatures up to 360°C can be performed easily.
  • The operating temperature range is wide and high precision temperature control is possible.
  • In addition to various operation modes including program operation, various support functions such as calibration offset function, power failure recovery mode selection, ***r setting information storage and ringing function are provided as standard.
  • Program operation of up to 99 steps, 99 patterns and repetition is possible.
  • Equipped with power supply/operation time integration function.
  • With cable holes, data can be easily collected from internal sample equipment.
  • Safety and maintenance: We have further enhanced safety features such as a self-diagnosis function and a digital setting indep***ent excessive rise prevention device. When the door is opened during operation, the door switch operates to turn off the fan and heater.

Spec

  • System: Forced air circulation
  • Temperature control range: Room temperature +15℃ - 360℃
  • Temperature control accuracy temperature variation: +/- 0.2℃ (at 360℃) JTmK05, +/- 0.6℃ (at 360℃) JIS
  • Temperature distribution accuracy temperature gradient: +/- 3℃ (at 360℃) JTmK05, 12℃ (at 360℃) JIS
  • Temperature rise time: Approximately 60 minutes
  • Internal dimensions: Width 470 x Depth 450 x Height 450mm
  • Outer dimensions: Width 640 x Depth 695 x Height 915mm
  • Internal capacity: 95L
  • Shelf board load capacity: Approximately 30kg/board
  • Number of shelf rests/Shelf rest pitch: 12 stages/30mm
  • Power (50/60Hz): Single phase 200V
