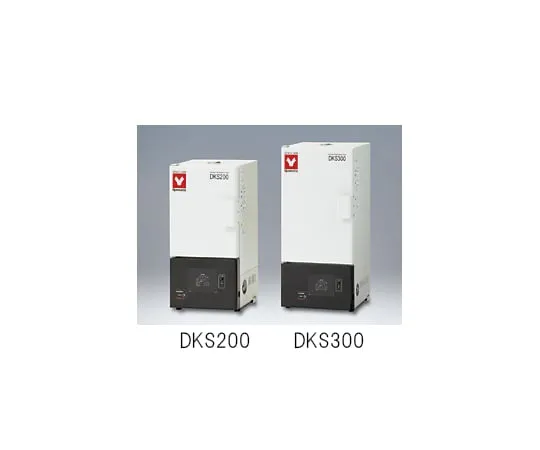

61-9659-96 Blast Temperature Drying Apparatus DKS200
Product Description
Product Model: 61-9659-96Product Brand: Yamato Scientif […]
Contact Us
Product Details
Product Model: 61-9659-96
Product Brand: Yamato Scientific Co., Ltd.
Features
- Calibration offset function, power outage compensation function and key lock function are provided as standard.
- The installation space is compact, 320 mm wide x 340 mm deep for model 200 and 380 mm wide x 440 mm deep for model 300.
- It comes with fall prevention metal fittings as standard.
- The shelf board can be selected at any position.
- The temperature control is PID controlled by a microcomputer with auto start, auto stop and quick auto stop timers.
- Three types of controller sensor disconnection warning and excessive rise prevention mechanism (heater disconnection and indep***ent excessive rise prevention mechanism by hydraulic temperature regulator are provided as standard.
Spec
- System: Blower circulation system
- Performance (conditions: Temperature and humidity 23℃ +/- 5℃, 65% RH +/- 200% (no load))
- Operating temperature range: Room temperature +10 - 210℃
- Temperature control accuracy: +/- 1℃ (at 210℃)
- Temperature distribution accuracy: +/- 3℃ (at 210℃)
- Time-of-arrival of highest temperature: Approximately 60 minutes (room temperature +10 - 210℃)
- Interior: Stainless steel plate
- Exterior: Chromium-free electric zinc plating steel chemical resistance baking finish
- Heat insulator: Rock wool
- Heater: Iron-chromium wire heater (400W)
- Blower fan: φ130 steel sheet fan
- Exhaust opening: Stainless Steel (SUS304) inner diameter 30mm 1 pc on upper surface
- Door: Chromium-free electric zinc plating steel chemical resistance baking finish
- Temperature controller: PID control
- Timer: 0 - 999.9 hours
- Temperature/Timer display: LED digital display
- Sensor: K class thermocouple
- Operation function: Constant value operation (timer setting for auto-start, Auto-stop selection), Quick stop
- Additional function: Calibration offset function, Power failure compensation function, Key lock function
- Control panel: Sheet key (LED: Temperature, Timer lamp: Operating heater, Temperature abnormal), Main switch (electrical leakage breaker)
- Safety mechanism: Liquid pressure type indep***ent excessive rise prevention device, Automatic temperature excessive rise prevention, Sensor input alarm, Electrical leakage breaker
- Standards
- Internal dimensions: 240 x 250 x 340mm
- Outer dimensions*2: 320 x 340 x 685mm (outer dimensions do not include protrusions. The length of the electrical cord is approximately 2m out of the apparatus)
- Internal capacity: Approximately 20L
- Power (50/60Hz) rated current: 100VAC4.5A (15A)
- Weight: Approx 23kg
- Number of shelf rests/Shelf rest pitch: 5 stages/50mm
- Accessories: Shelf board 2 boards/Shelf rest 4 pcs, Anti-tip bracket set
