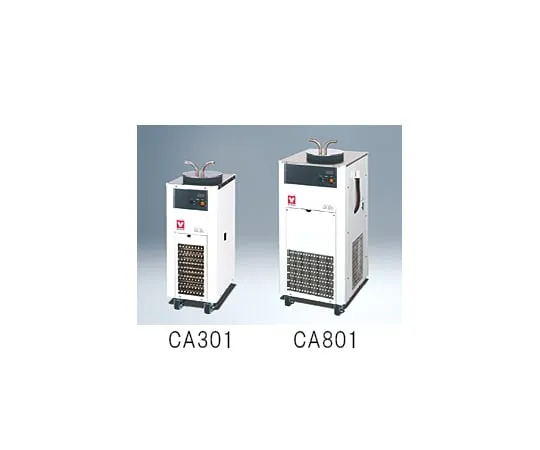

61-9658-89 Cooling Trap CA301
Product Description
Product Model: 61-9658-89Product Brand: Yamato Scientif […]
Contact Us
Product Details
Product Model: 61-9658-89
Product Brand: Yamato Scientific Co., Ltd.
Features
- A cooling trap capable of efficiently collecting water vapor and harmful vapor discharged from a vacuum open, rotary evaporator, etc., in a vacuum system. This is a space-saving refrigerator unit that can handle acid and organic solvent systems.
- With built-in refrigerator and casters, you can easily move to the place you need.
- This has the effect of significantly reducing the amount of steam drawn into the vacuum pump.
- Can also be used as a pre-freezing tank or a cryogenic tank.
- Refrigerant R404A is used in compliance with specific CFCs regulations.
- Glass capacitors are optional for acid and organic solvent systems.
Spec
- System: Direct trap or glass trap
- Dehumidification capacity: Maximum 0.9kg (water system)
- Minimum achieving temperature *1: -45℃
- Time-of-arrival of lowest temperature: 20 minutes (+20 -> -45℃)
- Water tank Dimensions: Inner diameter 153 x height 235mm
- Internal capacity: Approximately 4l (liquid temperature 3l)
- Power supply: AC100V
- Outer dimensions (width x depth x height): 345 x 475 x 726
