61-9658-87 Large Constant-Low-Temperature Water Bath BL810
Product Description
Product Model: 61-9658-87Product Brand: Yamato Scientif […]
Contact Us
Product Details
Product Model: 61-9658-87
Product Brand: Yamato Scientific Co., Ltd.
Features
- Large capacity 36 L/80 L, low temperature constant temperature water bath of - 15 to +70°C is available. A wide range of temperatures is possible.
- Wide range of operating temperature
- - 15 to +70°C
- Full support function

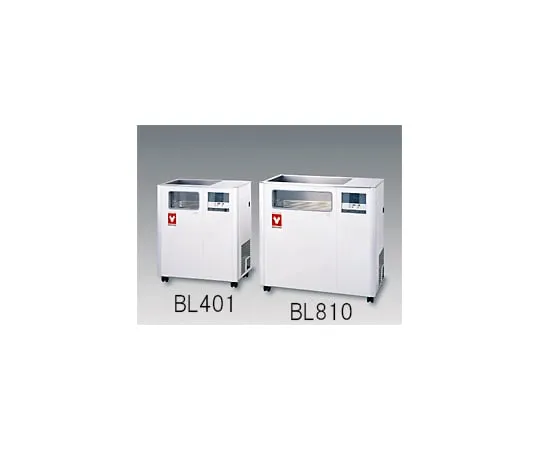

- Auto stop operation and auto start operation are possible. RS485 communication function and temperature output terminal (4-20 mA) are standard. Equipped with a large observation window. (BL401: Width 250 x Height 135 mm) (BL810: Width 450 x Height 135 mm)
- Full of safety functions
- Self-diagnosis function, over-current earth-leakage breaker, refrigerator pressure detection, prevention of blank fire
Spec
- System: Pump circulation cooling
- Operating temperature range: -15 to +70℃ (at room temperature 20℃) (when setting the refrigerating machine operation 40℃ or less)
- Temperature control accuracy (at 20℃): +/- 0.1℃ (JTm K05)
- Temperature fluctuation (at 20℃): +/- 0.7℃ (JIS)
- Temperature distribution accuracy (at 20℃): +/- 0.3℃ (JTm K05)
- Temperature gradient (at 20℃): 0.6℃ (JIS)
- Display unit: 0.1℃
- Cooling capacity: Approx 880W (756kcal/h) at 15℃, room temperature 20℃
- Outer dimensions: Width 880 x depth 490 x height 855mm
- Power supply: Single phase 200V
