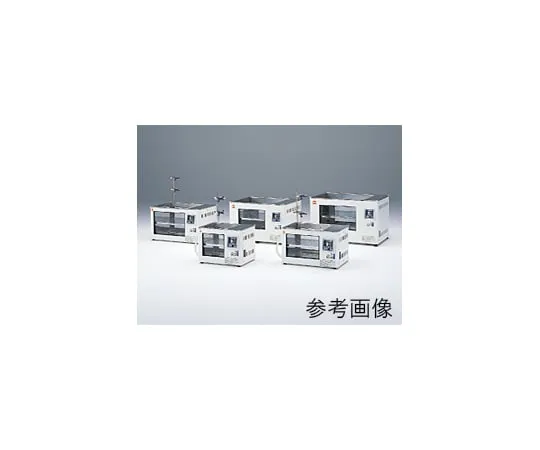

61-9658-77 Constant Temperature Water Tank BA400

model: 61-9658-77
brand: Yamato Scientific Co., Ltd.

Product Description

Product Model: 61-9658-77Product Brand: Yamato Scientif […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-9658-77
Product Brand: Yamato Scientific Co., Ltd.

Features

  • A thermostatic water bath that is easy to *** and easy to operate. It is a variation of 5 models up to 27 L to 144 L capacity in the tank, and 5 types with program function to meet the purpose of ***.
  • Variation BA Series (Program Operation): In addition to BK type functions, a controller with program operation function is adopted.
  • Performance and function: A line up of a fixed operation function type (BK type) and a program operation function type (BA type) with 1 pattern 30 steps (or 2 patterns 15 steps). The highly accurate temperature control system and efficient stirring in the tank by the circulating pump provide extremely high temperature control accuracy. Both temperature and time settings and instruction values are displayed digitally. The timer has auto start and quick auto stop functions.
  • Usability and safety: Controller is easy to set up and down key input. Excellent operability and high precision temperature control. Uses an integrated controller with digital settings to prevent excessive rise. In the unlikely event of an abnormality, always control to the safe side. Safety functions such as self-diagnosis function, overcurrent earth-leakage breaker, etc. are also provided.
  • System Up: Cooling channels (optional) provide room temperature control. Also, water tank lid, container mounting rack and viscometer holder are available as options. "

Spec

  • System: Stirring by pump
  • Operating temperature range: Room temperature +5 - 80℃
  • Temperature control accuracy: +/- 0.02 to +/- 0.07℃
  • Temperature distribution accuracy: +/- 0.3℃
  • Time-of-arrival of highest temperature: Approx 110 minutes
  • Internal dimensions (width x depth x depth) (mm): 400 x 350 x 300 *Not including projections.
  • Outer dimensions (width x depth x height) (mm): 590 x 410 x 367 *Not including projections.
  • Window dimensions: 340 x 215mm
  • Chamber capacity: Approx 42L
  • Number of shelf boards: 5
  • Drainage hose diameter: φ15 x 20mm
  • Power (50/60Hz): AC100V
