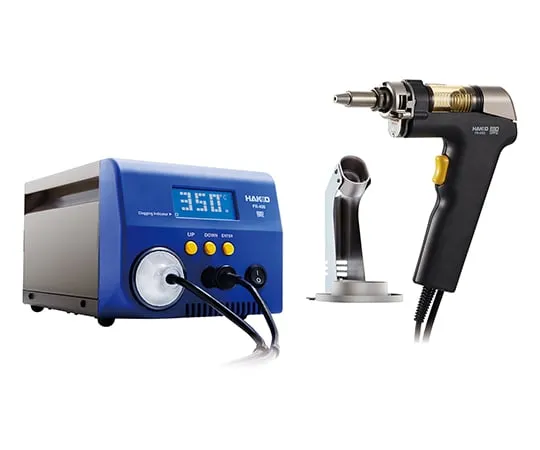

3-9243-21 Solder Sucker Body FR400-82
Product Description
Product Model: 3-9243-21Product Brand: HAKKO Features W […]
Contact Us
Product Details
Product Model: 3-9243-21
Product Brand: HAKKO
Features
- With a built-in vacuum pump, high power of 300W enables solder absorption of high heat capacity and high heat radiation substrates.
- The trowel is a quick change mechanism.
Spec
- Specifications: Body
- Suction flow rate: 15 L/min
- Vacuum generation method: double cylinder type diaphragm pump
- Ultimate Vacuum Pressure: 80 kPa (600 mmHg)
- Setting Temperature Range: 350 to 500 ° C
- Ripple Temperature: ± without Load 5 ° C
- power supply: AC100V 50/60 Hz 2-Pole Ground Type Plug
- Power Consumption: 320 W
- Main Unit Output: 29 VAC
- Extracorporeal Dimensions: 166 x 137 x 264 mm
- Body Weight: 5.7 kg
- ★ [Iron Part]
- ★ Power Consumption: 300 W (29 V)
- Resistance between nozzle and ground: < 2 Ω
- Leak voltage: < 2 mV
- heaters: composite heaters
- Cord Length: 1.2 m
- Total length : 183 mm (When Nozzle Φ 1.0 mm is Installed)
- Weight cookies : 270 g (When Nozzle Φ 1.0 mm is Installed)
- Set Contents: Body, Saw, Nozzle Φ1 mm (N 60 -2), soldering iron stand (With Cleaning Sponge), power cord, Maintenance Toolbox, Cleaning pin (Nozzle Φ1 For mm/For Heater), Cleaning Drill (For Φ1 mm), Nozzle Wrench, Filter x 2 pieces, Ceramic Paper Filter x 4 pieces
