Analyzer, Testing Equipment

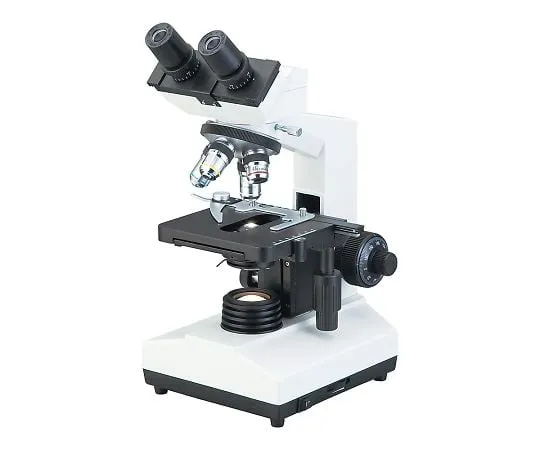

2-2626-21 Built-in biological microscope digital camera DN-107T
Product Description
Product Model: 2-2626-21Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 2-2626-21
Product Brand: AS ONE Corporation
Features
- Images can be imported to a PC via USB output.
Spec
- Overall ratio: 40 ~ 1000 x
- Eyepiece: WF 10 x (18 fields)
- Objective lens: 4 x, 10 x, 40 x, 100 x
- Focusing: Coaxial coarse microtremor
- Stage: Mechanical stage (140 x 140 mm), range of motion (75 x 50 mm)
- Lighting: LED lamps
- Eye width adjustment range: 55 ~ 75 mm
- Resolution: 1280 x 1024 (1.3 million pixels)
- Lens barrel type: Binocular head, tilt angle 45 degrees
- Body size: 251 x 197 x 380 mm
- Power supply: 100 ~ 240 VAC 50/60 Hz
- Interface: USB 2.0
- Operating System: Windows ® 7/8/10
- Includes standard image processing software (length and angle measurement)
- *Oil is required when using a 100 x objective lens.
