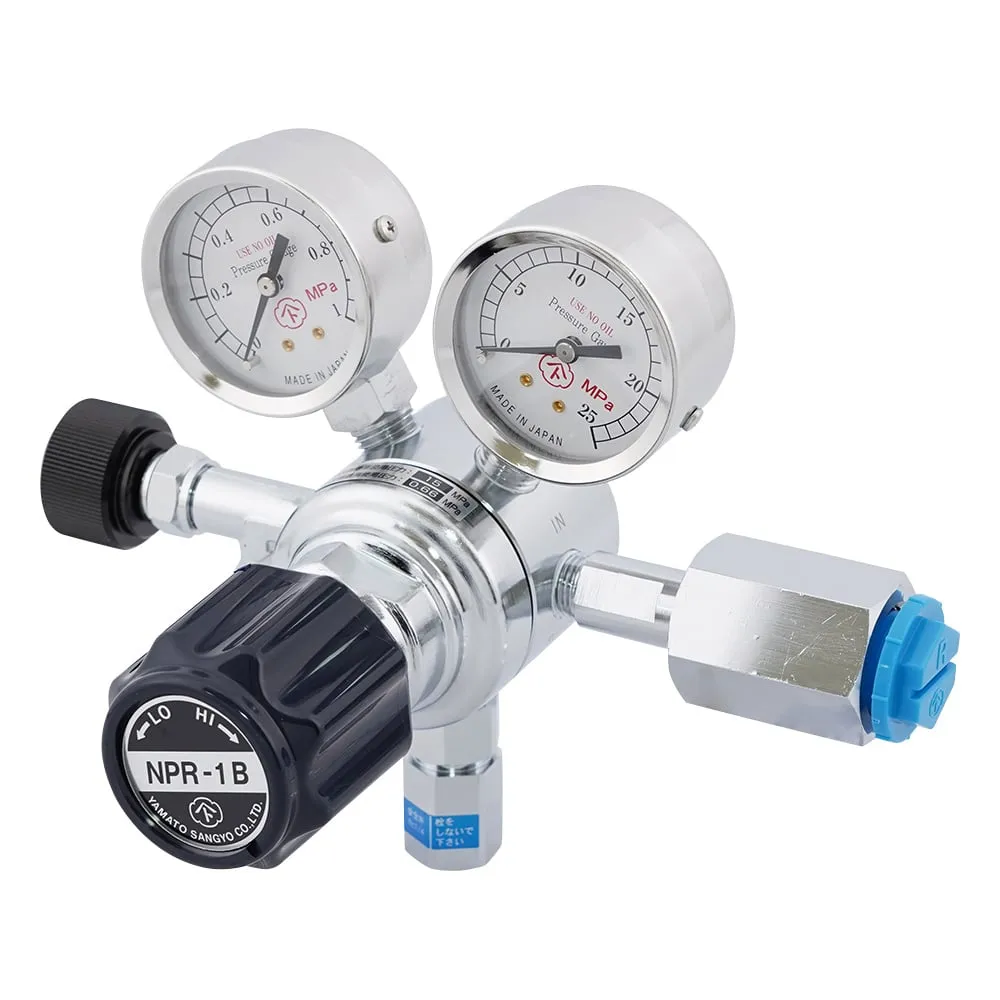

3-9056-11 Pressure Regulator (balanced single stage system) brass (C 3604 B) without Inlet Purge Valve NPR-1B-R-11N01-2210-F
Product Description
Product Model: 3-9056-11Product Brand: YAMATOSANGYO Fea […]
Contact Us
Product Details
Product Model: 3-9056-11
Product Brand: YAMATOSANGYO
Features
- Because of the NPR method (balance structure), stable adjustment pressure is maintained.
- Suitable for gas supply with 99.99% gas purity.
Spec
- main body material : brass (C 3604 B)
- Inlet purge valve: none
- Target gas: Ar, N2, O2, H2, He (Unusable: CO2, corrosive gas)
- pressure of use : P1/to 15 MPa , P2/to 0.66 MPa
- standard flow rate : 320 L/min (P1: 15 at MPa, P2: 0.66 at MPa)
- Inlet Connection: W 22/14 (P) Right bag nut
- Outlet connection: with valve (Rc 1/4)
- Weight: 1.6 kg
- *There are other specifications for inlet/outlet pressure gauges, fittings, gas types, etc. Please contact us.
