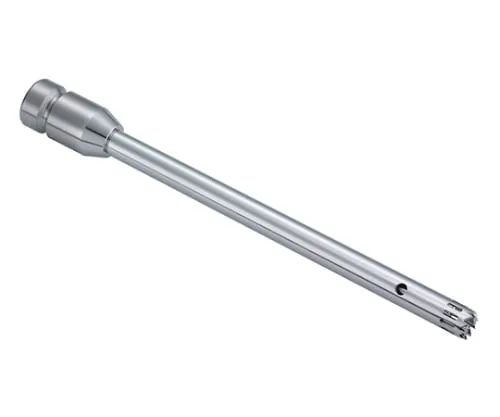

61-4948-37 Shaft Generator S10N-8G-ST
Product Description
Product Model: 61-4948-37Product Brand: IKA Features Th […]
Contact Us
Product Details
Product Model: 61-4948-37
Product Brand: IKA
Features
- The ST shaft generator is ideal for grinding tissue and fibrous materials.
- The saw blade is designed for pulverizing fibrous materials and tissues.
- Made of high quality stainless steel.
Spec
- Smallest processing volume (against H2O): 0.001L
- Maximum processing volume (for H2O): 0.05L
- Stator (Fixed blade): 8mm (diameter)
- Rotor (Rotation blade): 6.1mm (diameter)
- Gap between the rotor and stator: 0.25mm
- Allowable maximum speed: 30000rpm
- Circumferential speed (at most): 9.6m/s
- Minimum immersion depth: 22mm
- Maximum immersion depth: 95mm
- Shaft length: 115mm
- Contact with substance and medium: PTFE,AISI316L
- Smallest: pH2
- Largest: pH13
- Resistance to solvents yes
- Appropriate to the abrasive materials yes
- Highest temperature: 180℃
- Sterilization method: all methods
- Smallest final grain size of the suspension liquid: 5μm
- Largest final grain size of the suspension liquid: 25μm
- Smallest final grain size of the emulsion: 1μm
- Largest final grain size of the emulsion: 10μm
