Features

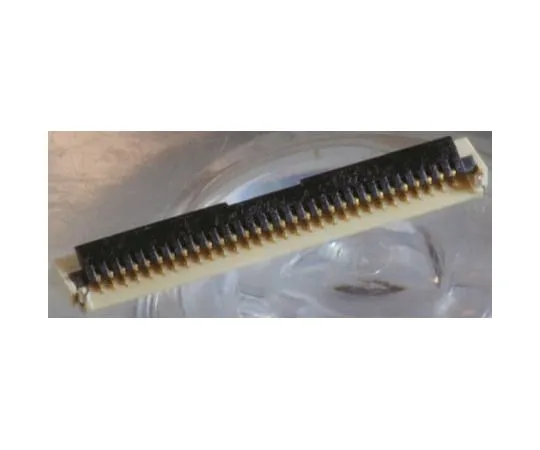

• Hirose Electric FH19/FH19SC Series 0.5 mm FPC/FFC Connector
• The FH19/FH19SC Series 0.5 mm ZIF (0 insertion force) FPC/FFC connectors are designed to be low profile and lightweight.
• The FPC/FFC connectors of the FH19/FH19SC series are as low as 0.9 mm in height and as narrow as 3 mm in width, reducing footprint and space on the board.
• Rotating flip-lock actuators make it easy to insert and secure the FPC.
• This actuator has a temporary holding mechanism that keeps the FPC open when inserted.
• When the actuator is fully closed, a clear feel and sound indicate that it is firmly locked in place.
• The brackets on both sides of the connector secure the connector to the board and also act as guides when inserting the FPC/FFC.
• The leadless design of this metal fitting saves space on the board. The bottom of the FPC/FFC connector is covered with resin and the contacts are not exposed, so the connector can be mounted on the board pattern.
• The FH19C series FPC/FFC connector supports 0.2 mm thick FPCs.
• The FH19SC series FPC/FFC connector supports 0.3 mm thick FPCs.
• Features & Advantages: Low profile (0.9 mm height) Reduced footprint saves space on board Rotating flip-lock actuator makes FPC/FFC easy to insert and hold securely Clear feel and sound to confirm that the actuator is fully closed Metal guide positions FPC/FFC and holds the board Can be mounted on board pattern due to sealed design
• Use: Small portable devices Personal mobile devices Laptops Mobile phones PDAs Portable audio players DVD-R
