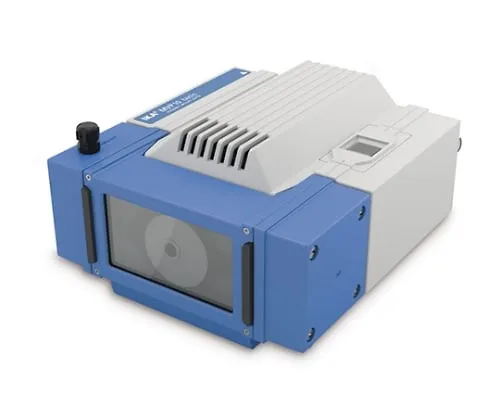

61-4946-92 Vacuum Pump MVP 10 Basic MVP10basic
Product Description
Product Model: 61-4946-92Product Brand: IKA Features Di […]
Contact Us
Product Details
Product Model: 61-4946-92
Product Brand: IKA
Features
- Diaphragm type vacuum pump
Spec
- Pump Speed (50/60Hz): 1.7m3/H
- Maximum pump speed (50/60Hz): 28.3L/min
- Limit pressure (no gas stabilizer): 8mbar
- Limit pressure (gas stabilizer is available): 15mbar
- Suction pressure connection port size: 10mm
- Suction level: 2
- Discharge pressure connection port size: 10mm
- Gas stabilizer valve: yes
- Minimum input pressure: 7mbar
- Maximum input pressure: 1050mbar
- Cylinder: 2
- Rotation speed range: 1380 - 1680rpm
- Nominal speed: 1380 rpm
- Noise level at low vacuum degree: 65DB(A)
- Body dimensions (W x H x D): 245 x 155 x 320mm
- Weight: 11.5kg
- Allowable ambient temperature: 10 - 40℃
- Allowable ambient humidity: 80％
- DIN EN 60529 standard protection class: IP54
- Voltage: 230/115/100V
- Frequency: 50/60Hz
- Output: 180W
