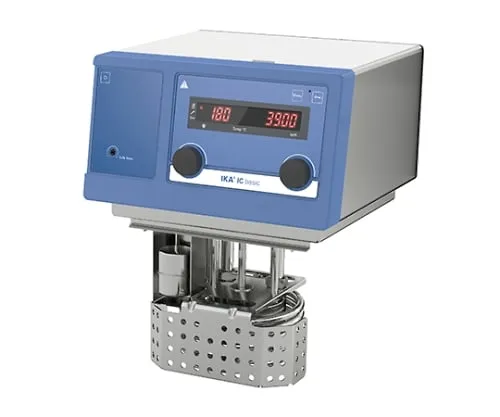

61-4946-47 Circulator IC basic
Product Description
Product Model: 61-4946-47Product Brand: IKA Features Th […]
Contact Us
Product Details
Product Model: 61-4946-47
Product Brand: IKA
Features
- The throw-in thermostat IC basic is designed to be easy to install in a bathtub.
- Can be heated up to 250°C by gently circulating in the bathtub.
- With a powerful discharge and built-in suction pump, it is possible to heat and circulate the sample in the container or directly into the bathtub.
- Can be connected to an external cooling water circulation device for adjusting the outside air temperature.
- All IKA thermostats are UL marked and meet safety standards such as DIN12876.
- The heating rate is fast and the temperature accuracy is ±0.02 K.
- Temperature setting range; Room temperature to 250°C.
- Uses an extendable inlet, so containers with different capacities can be installed.
- Adjustable maximum safe temperature. Uses a powerful discharge and suction pump.
- Adjustable maximum safe temperature.
- Large, easy-to-read LED display: Pump speed, temperature.
- Use the dial push buttons for intuitive operation. PT100 temperature sensor can be connected.
- Warning messages can be checked by sound and text. Built-in USB/RS232 for control and recording via a computer (Requires software sold separately or can be updated with firmware).
- M16 x 1 standard connection included.
Spec
- Appliance type: Immersion thermostat
- Category of DIN 12876 compliance: III
- Identification of DIN 12876 compliance: FL
- Heating output: 2500W
- Minimum work temperature: -20℃
- Maximum working temperature: -200℃
- Heating temperature range: Room temperature +10K at 1000rpm - 200℃
- Temperature control: PT100
- Temperature sensor: PT100
- Safety temperature sensor: PT1000
- Constant temperature holding: DIN 128760.02 +/- K
- Mounting connector for temperature sensor: PT100
- Display resolution: 0.1 +/- ℃
- Heating control accuracy: 0.1 +/- K
- Minimum value of safety device: 0℃
- Maximum value of safety device: 260℃
- Pump shape: Suction pressure
- Maximum pump pressure (discharge flow, 0 liter): 0.45bar
- Pressure pump (suction side) (not working): 0.35bar
- Maximum pump pressure (discharge flow, 1 liter): 26l/min
- Pump connection: M16 x 1
- Bath depth: 150mm
- Clasp: Bridge
- Free clamp (minimum): 260mm
- Free clamp (maximum): 360mm
- Technical data against standard value: DIN 12876
- Continuous use time: 100％
- Body dimensions (W x H x D): 285 x 313 x 291mm
- Weight: 8.5kg
- DIN EN 60529 standard protection class: IP21
- RS232 interface, USB interface: Included
- Voltage: 230/100 - 115V
- Frequency: 50/60Hz
- Output: 2650W
