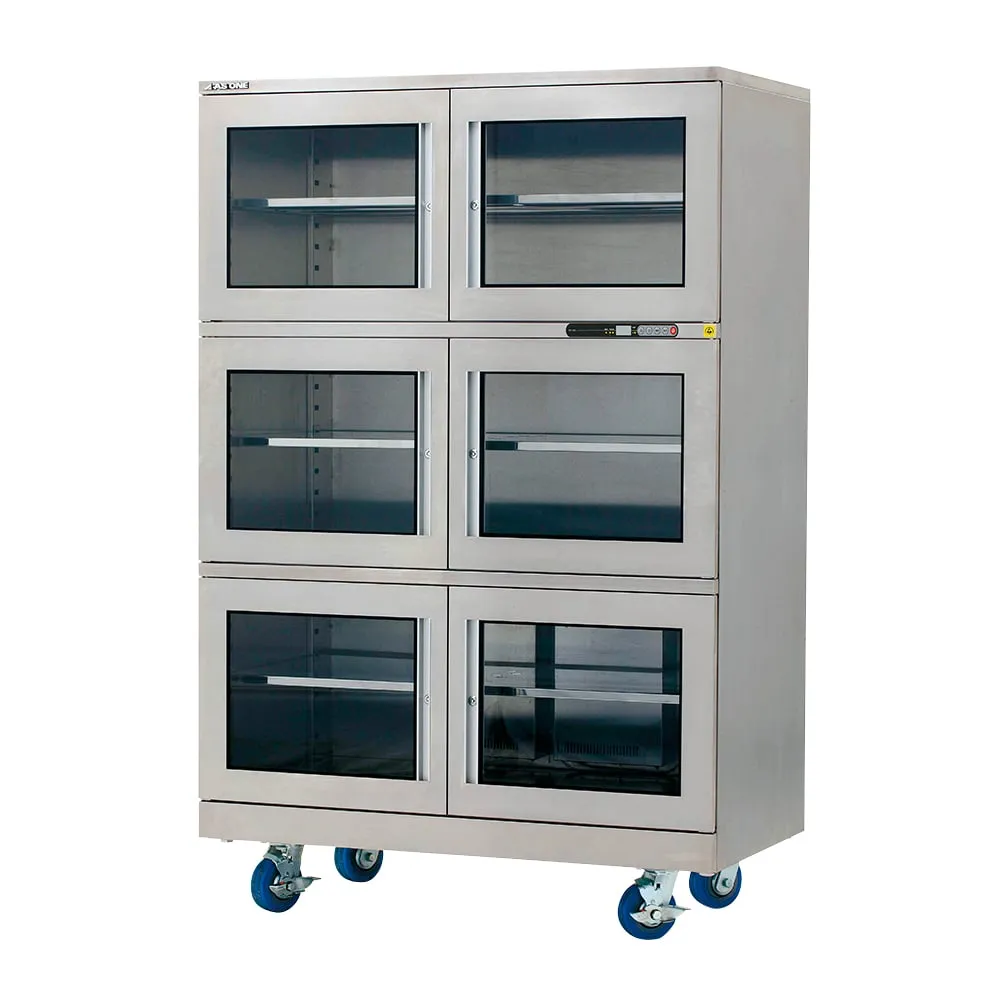

1-2904-13 Dry Max (Stainless Steel, Ultra Low Temperature, ESD Compatible) 1200 x 658 x 1840 mm SDMX-1200N
Product Description
Product Model: 1-2904-13Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-2904-13
Product Brand: AS ONE Corporation
Features
- Since humidity setting and control can be performed digitally, it can be ***d in the situation according to the object.
- With a large number of doors, it is possible to reduce the impact when opening and closing (with each door key).
- Even if the door is opened for 30 seconds from the ambient humidity of 60%RH and the interior humidity of 5%RH or less, the interior humidity recovers to 5%RH or less within 1 hour.
- Since it supports ESD, it is suitable for storing electronic components.
- Achieved humidity is 1%RH, making it suitable for storage of IC packages, LEDs, printed circuit boards, electronic components, etc. conforming to IPC/JEDEC J-STD-033B.
Spec
- External Dimensions (mm): 1200 x 658 x 1840
- Inner Dimensions (mm): 1150 x 630 x 1560
- Achieved humidity: 1%RH(Due to the humidity sensor error, the humidity display may not match even if the desired humidity has been reached.)
- Humidity Setting Range: 1~50%RH
- Humidity Control Range: 1%RH~ Indoor Humidity (* Humidity control range is for reference when there is no load inside the chamber and the outdoor environment is 25°C and 60%RH (changes dep***ing on outside air conditions).)
- Dehumidification system: Adsorption dehumidification and regeneration repeated operation
- Humidity Sensor: Capacitance Type
- Humidity sensor accuracy: ±2%RH
- Operating Environment Temperature: 5~35°C
- Volume: 388 L
- Shelf Board Dimension: 555 x 490 mm
- Material: Body/Stainless Steel (SUS304) Hairline Finish, Shelf/Stainless Steel (SUS430), Front Window/Glass
- Power: 100 VAC 50/60Hz Cord Length: Approx. 2 m
- Maximum power consumption: 290 W
- Average power consumption: 31 W/h
- Weight: 48 kg
- Caster: Φ75 mmPU (Polyurethane)
- Accessory: Shelf Boards x 3
- *Wooden packaging (wooden frame, pallet, etc.) is ***d.
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
