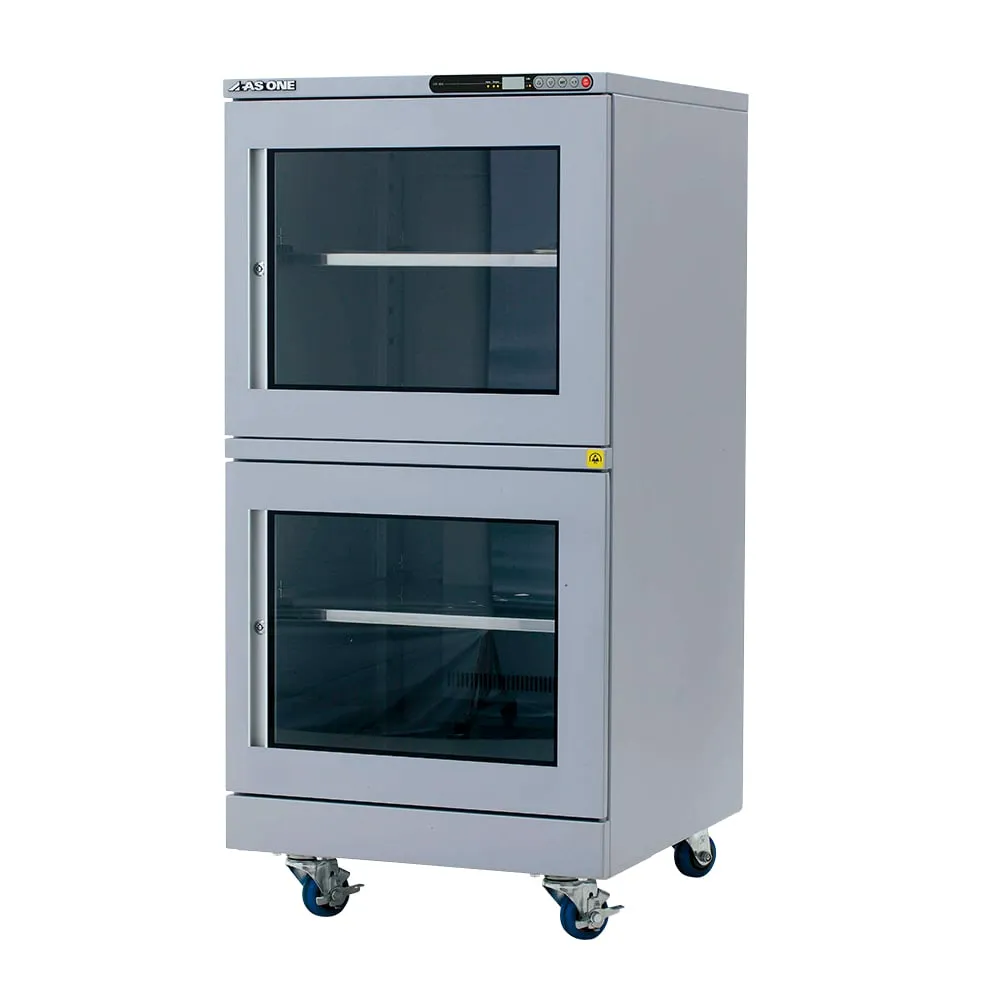

1-2903-11 Dry Max (Steel, Ultra Low Temperature, ESD Compatible) 599 x 658 x 1255 mm DMX-400N
Product Description
Product Model: 1-2903-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-2903-11
Product Brand: AS ONE Corporation
Features
- Since humidity setting and control can be performed digitally, it can be ***d in the situation according to the object.
- Even if the door is opened for 30 seconds from the ambient humidity of 60%RH and the interior humidity of 5%RH or less, the interior humidity recovers to 5%RH or less within 1 hour.
- Since it supports ESD, it is suitable for storing electronic components.
- Achieved humidity is 1%RH, making it suitable for storage of IC packages, LEDs, printed circuit boards, electronic components, etc. conforming to IPC/JEDEC J-STD-033B.
Spec
- External Dimensions (mm): 599 x 658 x 1255
- Inner Dimensions (mm): 549 x 630 x 1030
- Achieved humidity: 1%RH(Humidity display may not match even if target humidity is reached due to humidity sensor error.)
- Humidity Setting Range: 1~50%RH
- Humidity Control Range: 1%RH~ Indoor Humidity (* Humidity control range is for reference when there is no load inside the chamber and the outdoor environment is 25°C and 60%RH (changes dep***ing on outside air conditions).)
- Dehumidification system: Adsorption dehumidification and regeneration repeated operation
- Humidity Sensor: Capacitance Type
- Humidity sensor accuracy: ±2%RH
- Operating Environment Temperature: 5~35°C
- Shelf Board Dimension: 555 x 490 mm
- Material: Body/Steel (SPCC) Conductive Coating Finish, Shelf Board/Stainless Steel (SUS430), Front Window/Glass
- Power: 100 VAC 50/60Hz Cord Length: Approx. 2 m
- Maximum power consumption: 290 W
- Average power consumption: 31 W/h
- Weight: 48 kg
- Caster: Φ75 mmPU (Polyurethane)
- Accessory: Shelf Boards x 3
- Steel/Ultra Low Humidity/ESD Compatible
- *Wooden packaging (wooden frame, pallet, etc.) is ***d.
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
