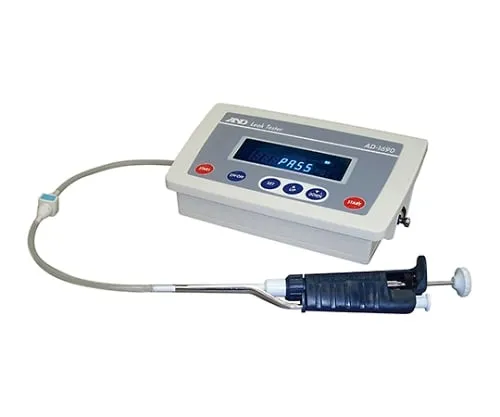

61-4679-08 Leak Tester AD-1690 AD-1690
Product Description
Product Model: 61-4679-08Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4679-08
Product Brand: A&D
Features
- Leak Tester for Micropipette
- Allows quick and easy inspection of leakage caused by piston seals, wear of O-rings, loose connecting nuts, scratches on chip folders, rust on piston parts, etc.
- One-touch operation
- Quick leak detection and determination: Good/bad determination in about 6 seconds
- Decompression system: Prevents dust from entering the pipette
- With user-replaceable filter: Prevents damage due to foreign matter being sucked into the main unit
- Negative pressure system: Reduces contamination problems of the pipette
- RS-232C interface standard (D-Sub9P male)
- Transmits, outputs and saves measurement results: Allows you to connect a printer or PC and leave a determination result. Measurement Data Logger (AD-1688) Can Store Judgment Results
- Carrying Case Sold Separately
- Patent pending
Spec
- Decompression pressure: -20kPa
- Determination: Based on the determination criteria (settings), Determination of presence or absence of leakage is displayed when judged normal = "PASS" when judged that there is a leak = "FAIL"
- Determination criteria: Pressure rise rate 0.1kPa/second (variable)
- Pressure display: Pressure display at 0.1kPa unit
- Power supply: AC adapter (included)
- Accessories: Instruction manual, AC adapter, AC adapter identification seal, Pipette attachment (4 types), Connection adapter
