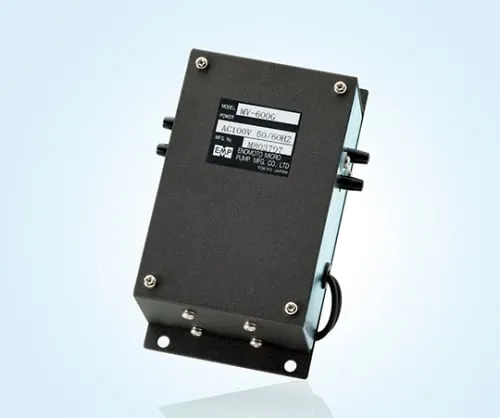

61-4483-01 Electromagnetic Air Pump Suction-Discharge Convertible Type MV-600G
Product Description
Product Model: 61-4483-01Product Brand: E.M.P-Japan Fea […]
Contact Us
Product Details
Product Model: 61-4483-01
Product Brand: E.M.P-Japan
Features
- It can be ***d as a high pressure type by piping each head on the left and right sides of the pump in series, or as a two-channel type by piping each head separately.
- Can handle different voltages.
- RoHS compatible product.
Spec
- Maximum discharge flow rate: 6L/min or more
- Maximum discharge pressure: 42.6kPa or more
- Maximum vacuum attainment level: -39.9kPa or less
- Rating voltage: AC100V
- Rated current: 0.25A
- Insulation Type: A
- Installation Ambient temperature: 0℃ - 40℃
- Gas contact unit material: CR, PF, Ni Plating
- Connection port size: φ6 mm
- Mass: 0.85kg
