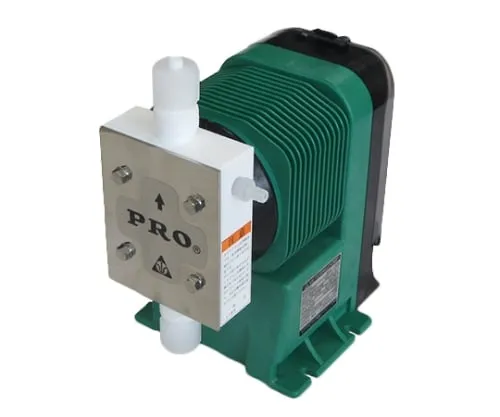

61-4441-52 Electromagnetic Drive Proportioning Pump 25mL/Min MGI-25-N-TTT-6
Product Description
Product Model: 61-4441-52Product Brand: KYORITSU KIKO C […]
Contact Us
Product Details
Product Model: 61-4441-52
Product Brand: KYORITSU KIKO CO.,LTD.
Features
- Suitable for a variety of chemical solutions as all of the contact parts are made of PTFE. High precision and high durability are achieved by carefully scraping the contact part. No water enters the inside even if it is directly jetted from any direction. JIS Waterproof Protection Grade 6 compliant. Easy to *** with free power supply, easy to see in low light red LED panel and Japanese indicator. Made in Japan.
Spec
- Power supply: Single phase 90 - 230V 50/60Hz
- Maximum discharge quantity: 25ml/min
- Maximum discharge pressure: 0.3MPa
- Up stroke length: 1.4mm (available range: 20 -100%)
- Stroke times: 0 - 50spm
- Liquid junction material Pump head: PTFE, Valve: PTFE, O-ring: PTFE, Perfluoro rubber
- Connection: φ6 x φ8 PTFE hose (optional)
