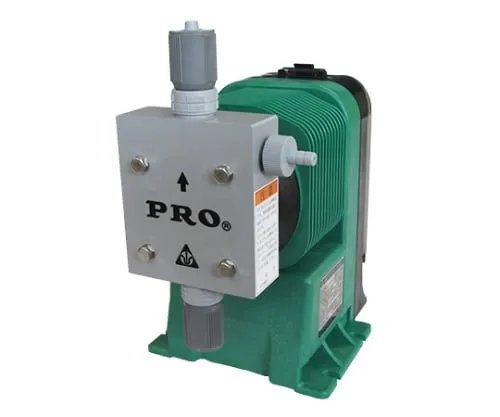

61-4441-48 Electromagnetic Drive Proportioning Pump 100mL/Min MGI-100-N-VCF-6
Product Description
Product Model: 61-4441-48Product Brand: KYORITSU KIKO C […]
Contact Us
Product Details
Product Model: 61-4441-48
Product Brand: KYORITSU KIKO CO.,LTD.
Features
- Delivers high accuracy and durability by carefully carving out the contact part. • Does not allow water to enter the inside even if it is directly jetted from any direction. JIS Waterproof Protection Grade 6. • Designed for ease of use such as free power supply, red LED panel that is easy to see even in dark places, and Japanese indicator. • Available in a variety of materials for various chemical solutions and applications. (Contact us separately)
Spec
- Power supply: Single phase 90 - 230V 50/60Hz
- Maximum discharge quantity: 100ml/min
- Maximum discharge pressure: 0.6MPa
- Up stroke length: 1.4mm (available range: 20 -100%)
- Stroke times: 0 - 80spm
- Liquid junction material Pump head: PVC, Valve: Ceramic, O-ring: FKM
- Connection: φ6 x φ11 PVC hose
