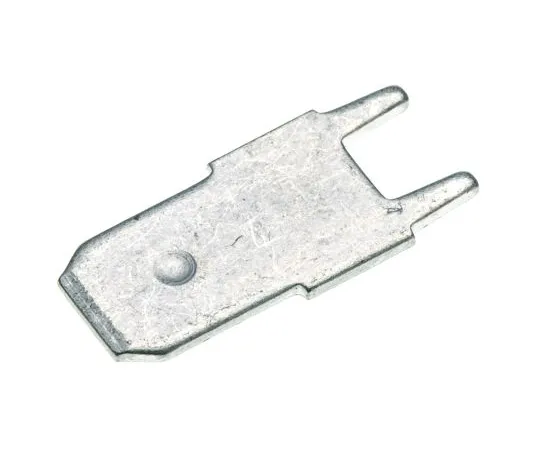

63-4641-83 RS PRO Grey Uninsulated Spade Connector, 7.9 x 6.4mm Tab Size 534-834
Product Description
Product Model: 63-4641-83Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4641-83
Product Brand: RS PRO
Features
- RS PCB - Wire Terminal Tab Adapter
- The PCB tab adapter product enables connection between wire terminals and the base in the female receptacle.
- These board tab/base blade adapters are available in 6.3 mm or 6.4 mm tab sizes and are tin plated.
- Part number < 534-929') 534-929/is at an angle of 45 ° and has an M5 fixed hole.
- Terminal for *** in substrate connection via 6.3 mm push-in receptacle (part number < 488-1235') 488-1235.
- Terminal material is brass, hot-dip tin plating. The 45° blade has a fixed hole of M5.
- The fixed hole diameter of the vertical and horizontal blades is 1.5 mm. F.C
- 5.08. Horizontal only, first hole 5.5 mm from board ***
Spec
- Insulation:Uninsulated
- Tab Size:7.9 x 6.4mm
- Tab Width:6.4mm
- Termination Method:Solder
- Contact Plating:Tin
- CODE No.:534-834
