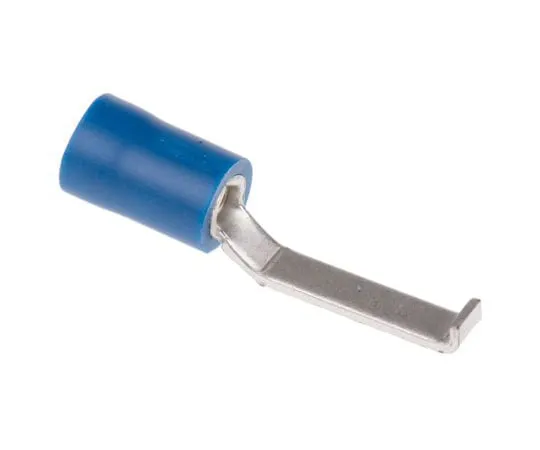

63-4641-77 RS PRO Hooked Insulated Crimp Blade Terminal 17.6mm Blade Length, 1.5mm² to 2.5mm², 16AWG to 14AWG, Blue 534-727
Product Description
Product Model: 63-4641-77Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4641-77
Product Brand: RS PRO
Features
- UL Certified Components
- Blade Length, Red and Blue 16.8 mm, Yellow 17.2 mm
- RS Pro Insulated Hook Blade Terminal
- Red, 0.5-1.5 mm2 Blue, 1.5-2.5 mm2 Yellow, 4.0-6.0 mm2
Spec
- G***er:Male
- Insulation:Insulated
- Insulation Material:Vinyl
- Shrouded/Unshrouded:Unshrouded
- Maximum Wire Size mm²:2.5mm²
- Minimum Wire Size AWG:16AWG
- Maximum Wire Size AWG:14AWG
- Blade Length:17.6mm
- Blade Width:3.1mm
- Blade Thickness:0.8mm
- Hooked:Yes
- Colour:Blue
- Contact Plating:Tin
- Contact Material:Copper
- CODE No.:534-727
