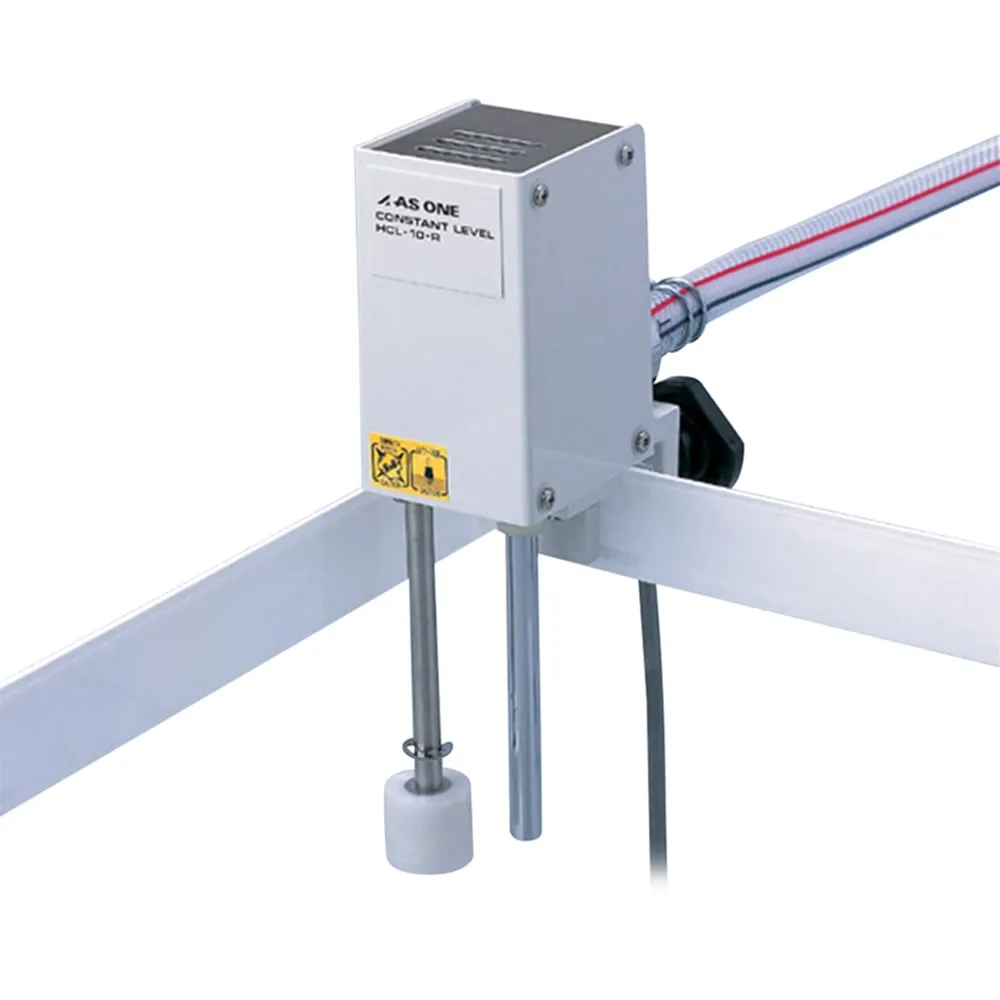

1-104-01 Constant Level HCL-10-R
Product Description
Product Model: 1-104-01Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 1-104-01
Product Brand: AS ONE Corporation
Features
- When the water level falls below the set level, the water is automatically fed to maintain a constant water level.
- Connect to the thermostatic unit.
Spec
- Highest water pressure: Approximately 0.69MPa (7kg/cm2)
- Available water temperature: 90℃
- Clamp mounting width: Within +/- 30℃
- Power supply: 100VAC 50/60Hz
- Power cord length: 1.8m (3P plug)
- Setting water level: 20 - 70mm from water tank edge
- Model number: HCL-10-R
