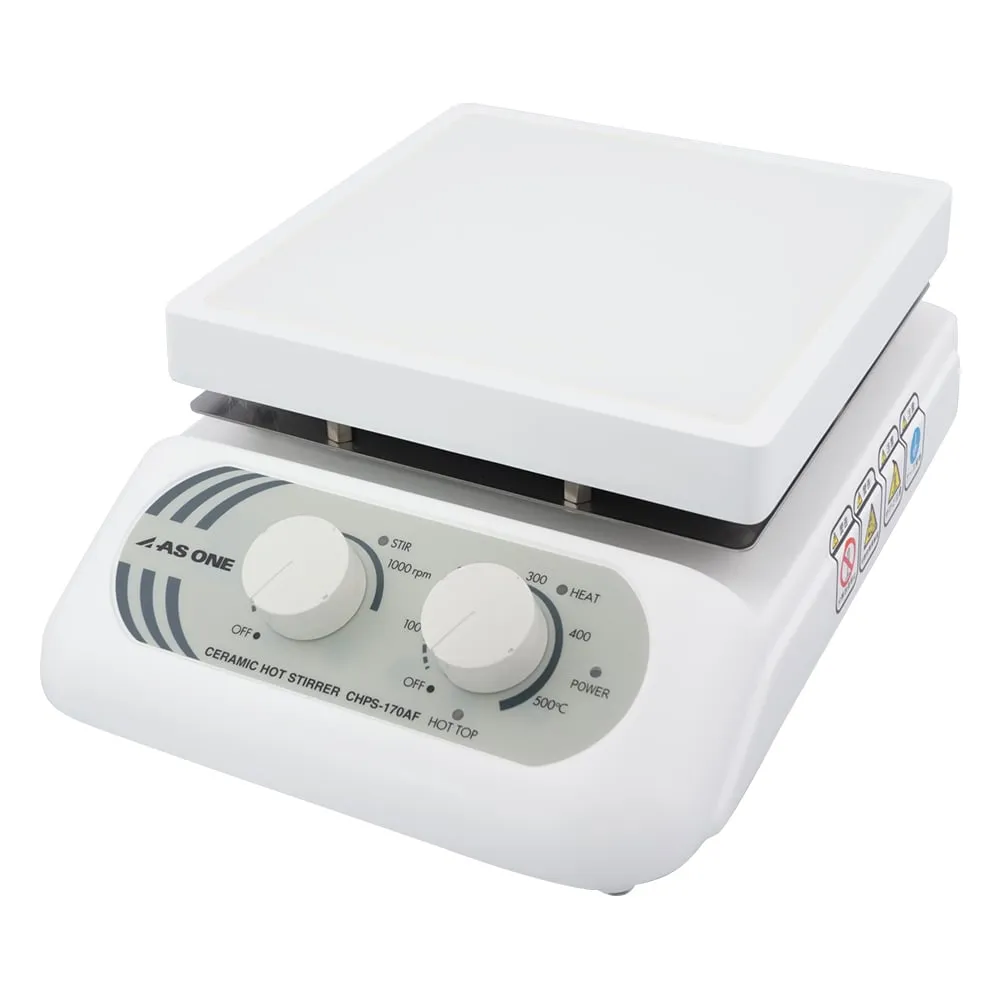

2-8080-31 Ceramic Hot Stirrer (Analog Type) 550℃ 175 x 178mm CHPS-170AF
laboratoryinstruments

2-8080-31 Ceramic Hot Stirrer (Analog Type) 550℃ 175 x 178mm CHPS-170AF

model: 2-8080-31
brand: AS ONE Corporation

Product Description

Product Model: 2-8080-31Product Brand: AS ONE Corporati […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 2-8080-31
Product Brand: AS ONE Corporation

Features

  • Ceramic glass plate with excellent heat and chemical resistance.
  • It can be ***d for high-temperature heating applications up to a maximum temperature of 550 degrees Celsius.
  • PID temperature control with a new algorithm improves plate temperature control.
  • It is equipped with a high temperature warning to prevent accidental touching at high temperatures.
  • Slow start rotation function suppresses solution scattering.

Spec

  • Model number: CHPS-170AF
  • Highest temperature (℃): 550
  • Plate size (mm): 170 x 170
  • Rotation speed: Maximum approximately 1200rpm
  • Motor: DC brush motor
  • Temperature control system: PID control
  • Sensor: K class thermocouple
  • Temperature, rotation speed control: Volume settings system
  • Material: Plate/ceramic, Body/aluminum die cast heat-resistant coating
  • Heater capacity: 900W
  • Safety device: Over current f***, high temperature warning display function
  • Power supply: 100VAC 50/60Hz
  • Power cord length: Approx 1.5m
  • Main unit size: 194 x 292 x 104mm
  • Weight: Approx 3kg
  • *Stirrer bar is not included in the package.
