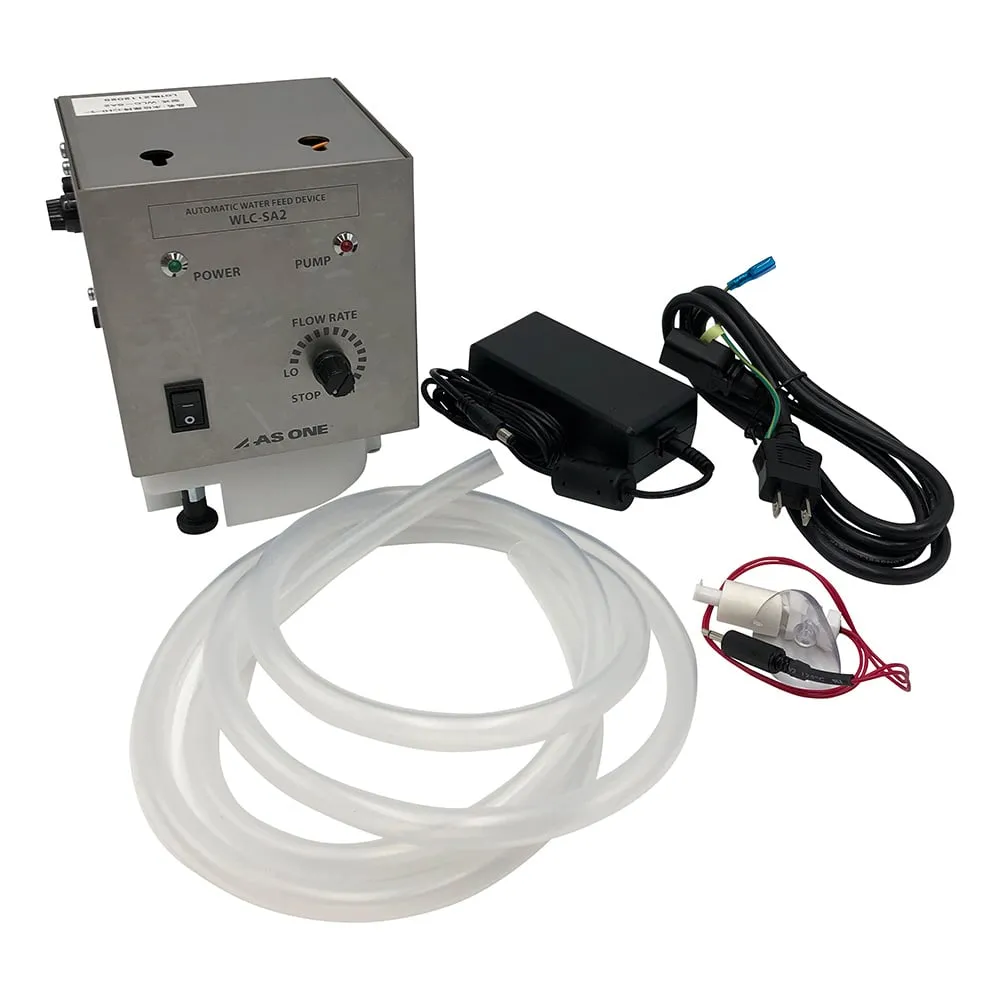

1-5802-21 Water Level Holding Controller WLC-SA2
Product Description
Product Model: 1-5802-21Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5802-21
Product Brand: AS ONE Corporation
Features
- The water level sensor is suction type, so it can be installed at any depth inside the water tank. (Cable length: approx. 300 mm) The water level sensor can be replaced with a footswitch (sold separately), and forced fluid feed using the footswitch is also possible.
- It has a wall mounting hole (Dharma hole) on the back and can be fixed with two M4 screws.
- Beca*** of the tube pump system, the tube can be replaced. (* Tubes have a lifespan.)
- Equipped with a water level sensor, automatic fluid delivery is possible!
Spec
- maximum flow rate (L/min) : 1.2
- Maximum lifting height (m): 1.8
- maximum flow rate : 1.2 L/min (flow rate adjustable)
- Liquid to be ***d: Aqueous solution at 60 ° C or less (Drinking water, neutral detergents, etc.) * Cannot be ***d as organic solvent, viscous liquid, or slurry.
- Water Level Detection: Float Type
- Sensor material: Denatured PPO (polyphenylene oxide), PP, SUS304 * Temperature -10 to + 80 ° C
- power supply: AC100 to 240 V 50/60 Hz 2.7 A
- power cord length: about 1.5 m
- Accessories: AC Adapter
- Compatible Tube: inner diameter Φ 10 mm • outer diameter Φ 13 mm Silicon Tube
- *Water supply tank (container) is not included.
