61-9653-81 ISO Flow Cup Orifice Diameter 3mm 108mL TP-305-3
Product Description
Product Model: 61-9653-81Product Brand: TP GIKEN Featur […]
Contact Us
Product Details
Product Model: 61-9653-81
Product Brand: TP GIKEN
Features

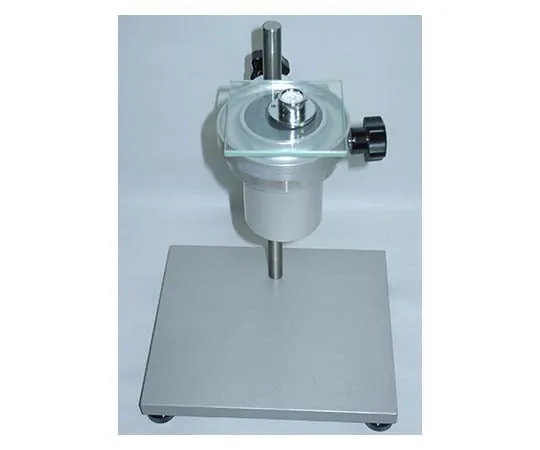

- This device fills a cup with a sample of paint, varnish, etc., and measures the viscosity easily and quickly by grinding the surface tension with the attached glass plate and the flow time from a fixed orifice.
Spec
- Orifice diameter: 3mm
- Range (Cst): 10 - 40
- Flow-down time: (seconds) 30 - 100
- Material: Made of aluminum (Body, orifice)
- Dimensions (mm): 86φ x 86
- Weight: Approx 2kg
- Internal capacity: Approximately 108mL
