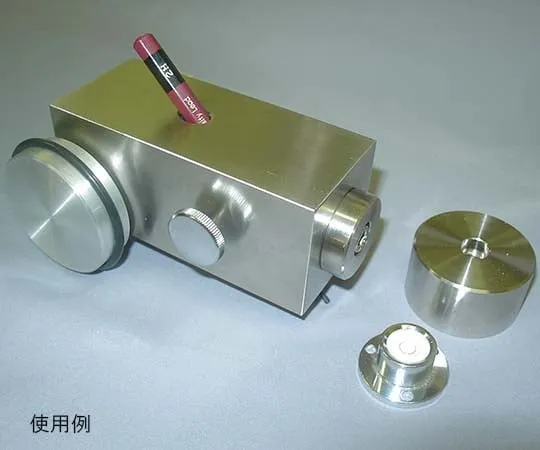

61-9653-78 Pencil Scratch Test Machine (Manual Type) 150 (130) x 80 x 65mm TP-260
Product Description
Product Model: 61-9653-78Product Brand: TP GIKEN Featur […]
Contact Us
Product Details
Product Model: 61-9653-78
Product Brand: TP GIKEN
Features
- This is a manual pencil scratching tester manufactured in accordance with JIS K-5600 and equipped with the function of a pencil scratching tester.
- The hardness and adhesion strength of the coating film are measured by the hardness of the pencil that scratches when the paint or varnish is scratched with a pencil held at a load of 750 g and an angle of 45 degrees.
Spec
- Standards: JIS K-5600
- Body dimension (width x depth x height in mm): Approximately 150 (130) x 80 x 65
- Pencil lead tip load (g): 750 ±10
- Scratch angle: 45 degrees
- Accessories: Storage box, Level 1 piece, Paper #10001 sheets, Weight for 750g (small) 1 piece, Weight for 1kg (large) 1 piece, Haxagonal wrench 1 piece
