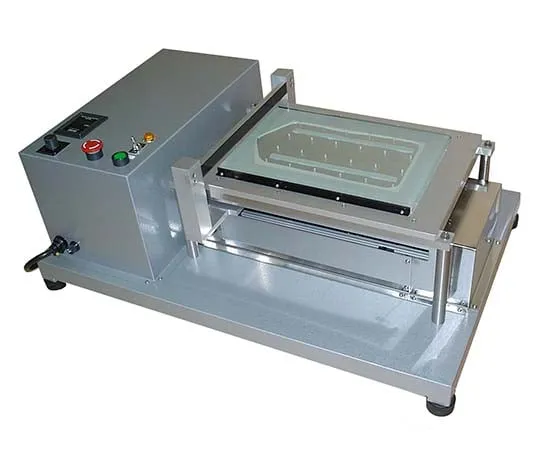

61-9653-74 Automatic Film Applicator (Type Also Used As Bar Coater) 940 x 540 x 300mm TP-202
Product Description
Product Model: 61-9653-74Product Brand: TP GIKEN Featur […]
Contact Us
Product Details
Product Model: 61-9653-74
Product Brand: TP GIKEN
Features
- This is a test machine that performs optimum coating tests on sheets of paper, metal, film, etc., by setting the coating speed with an applicator or bar coater.
Spec
- Dimensions (width x depth x height mm): 940 x 540 x 300
- Sample table (Width x Depth mm): 380 x 250 *coating area (Width x Depth mm): 297 x 210
- Sample fixation: Suction plate (with suction), Clip type (without suction)
- Speed: Approximately 10 - 100mm/sec
- Rotation speed: Digital display and dial setting type
- Accessories: Sample receiver, Suction hose, Weight
- Option: Vacuum pump, applicators, bar coaters
- Power supply: 100VAC, 1φ, 5A
- Weight: Approx 50kg
