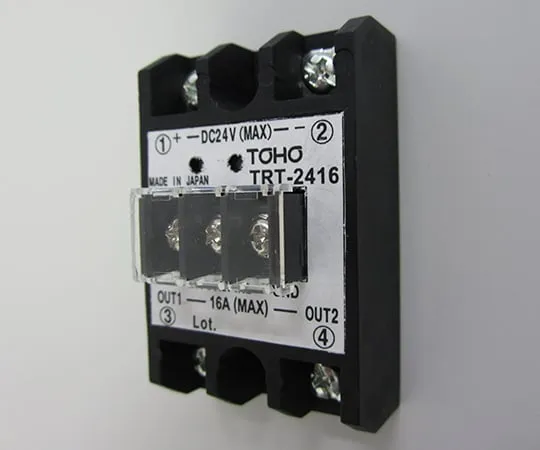

61-9638-28 Peltier Relay 16A TRT-2416
Product Description
Product Model: 61-9638-28Product Brand: TOHO ELECTRONIC […]
Contact Us
Product Details
Product Model: 61-9638-28
Product Brand: TOHO ELECTRONICS INC.
Features
- This relay module changes the direction of the drive current to the Peltier module in response to the heating/cooling control (SSR drive voltage output) signal from the temperature controller by simply connecting a DC power source to the outside.
Spec
- Input points: 2 points (IN1, IN2, GND common)
- Input type: Voltage DC12V +/- 1V (ON), DC0V to +1V (OFF)
- Minimum input time: 2ms or more (level input)
- Input resistance: 2.8kΩ
- Input connection method: Terminal block, Screw M3
- Output points: 1 point
- Output type: Connect to peltier drive output (OUT1, OUT2)
- Output type: ON/OFF
- Output voltage: DC8 - 24V (voltage depends on an external supply power voltage, Polarity depends on inversion function by input)
- Maximum load current: 16A (ambient temperature 0 - 50℃)
- Output connection method: Terminal block, Screw M4
- Ambient temperature and humidity range: Temperature/0 - 50℃, Humidity/20 - 90%RH,
- Storage ambient temperature and humidity range: Temperature/-20 to +70℃, Humidity/5 - 95%RH
- Weight: 100g or less
- Outer dimensions (Width x Depth x Height mm): 44 x 68 x 29.8
- External DC power (for relay, for peltier module drive) is required.
