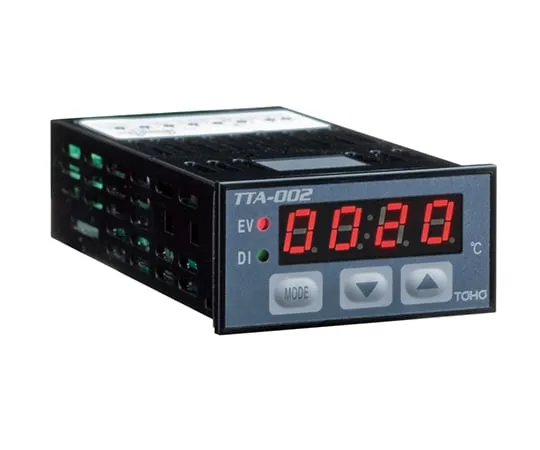

61-9638-23 Digital Indicator TTA-002 TTA-002-AE
Product Description
Product Model: 61-9638-23Product Brand: TOHO ELECTRONIC […]
Contact Us
Product Details
Product Model: 61-9638-23
Product Brand: TOHO ELECTRONICS INC.
Features
- Ideal for *** as an overrise preventer
- Equipped with DI input function, it is also possible to capture the contact output from the outside and output the event output.
Spec
- Input type: Thermocouple/K, J, R, T, N, S, B (input resistance 1MΩ)
- Display precision: Instruction value +/- (0.5% + 1 digit) or +/- 3℃, whichever is larger. However -100 - 0℃ is +/- 5℃, -200 to -100℃ is +/- 7℃, There is no regulation with 400℃ or less of B class thermocouple.
- Weight: 80g or less (excluding attachments)
- Power consumption: 5VA or less (AC264V), 4VA or less (AC24V), 2W or less (DC24V)
- Standard ambient temperature and humidity range: Temperature/23 +/- 10℃, Humidity/45 - 75RH
- Ambient temperature and humidity range: Temperature/0 - 50℃, Humidity/20 - 90RH
- Storage ambient temperature and humidity range: Temperature/-25 - 70℃, Humidity/5 - 95RH
- Event Output 1 point
- Outer dimensions (Width x Depth x Height mm): 48 x 103 x 24
