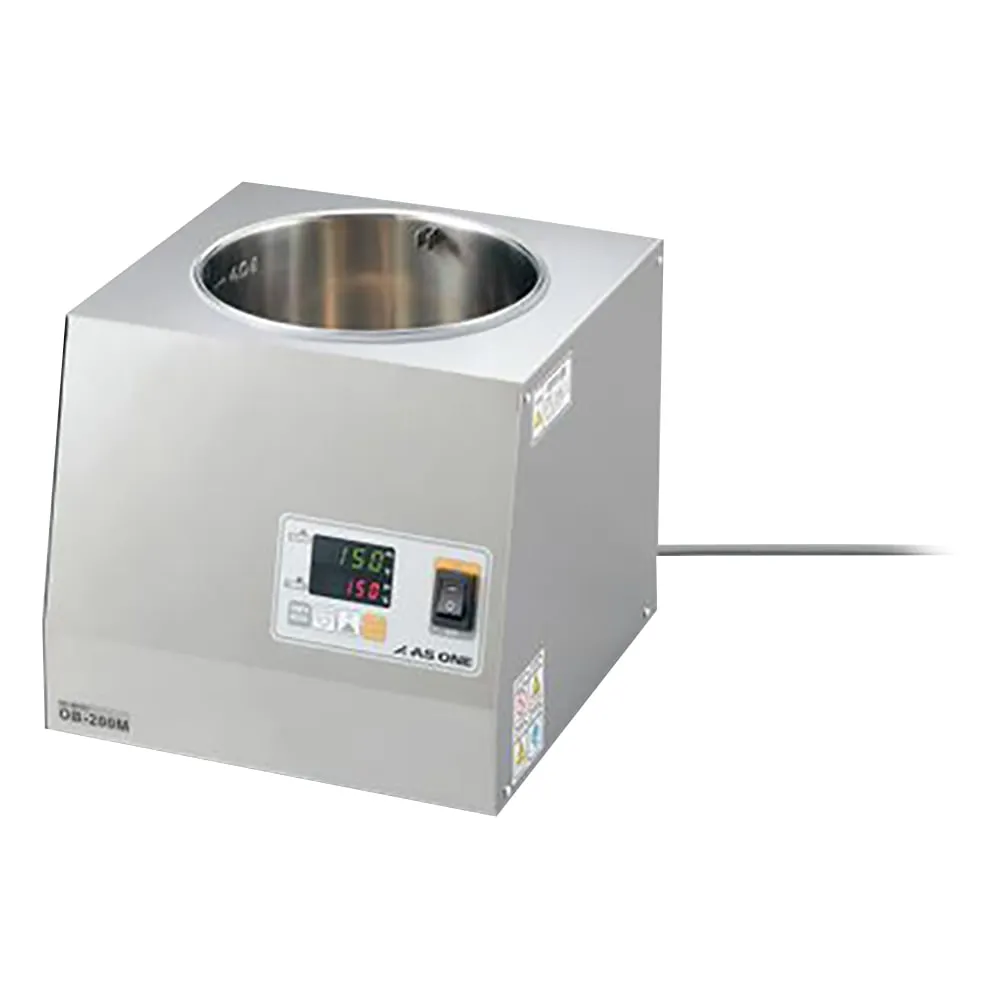

1-3149-41 Oil Bath OB-200M
Product Description
Product Model: 1-3149-41Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-3149-41
Product Brand: AS ONE Corporation
Features
- Box type bus series with built-in water tank
- PID control provides stable temperature control with high accuracy.
- The operation switch is panel waterproof (IP67 compliant).
Spec
- Outer dimension (mm): 260 x 266 (280)*1 x 241
- Chamber dimensions (mm): φ180 x 180
- Water tank volume: 4L
- Body material: Stainless Steel (SUS430)
- Water tank material: Stainless Steel (SUS316)
- Temperature settings range: Room temperature +5 - 200℃
- Temperature display precision: +/- 2℃
- Temperature sensor: K class thermocouple
- Temperature control system: Microcomputer PID control
- Timer setting range: 0 - 99 hours 59 minutes
- Attachable thermometer size: φ7 - φ10mm
- Safety device: Temperature excessive rise prevention device, overcurrent prevention f***, drip-proof switch
- Heater capacity: 750W
- Power supply: 100VAC 50/60Hz 800W
- Power cord: 2.5m 3P plug (with 2P conversion plug)
- Weight: 4.3kg
- Round tank
- *1 ( ) is the dimension including protrusions.
- Model number: OB-200M
