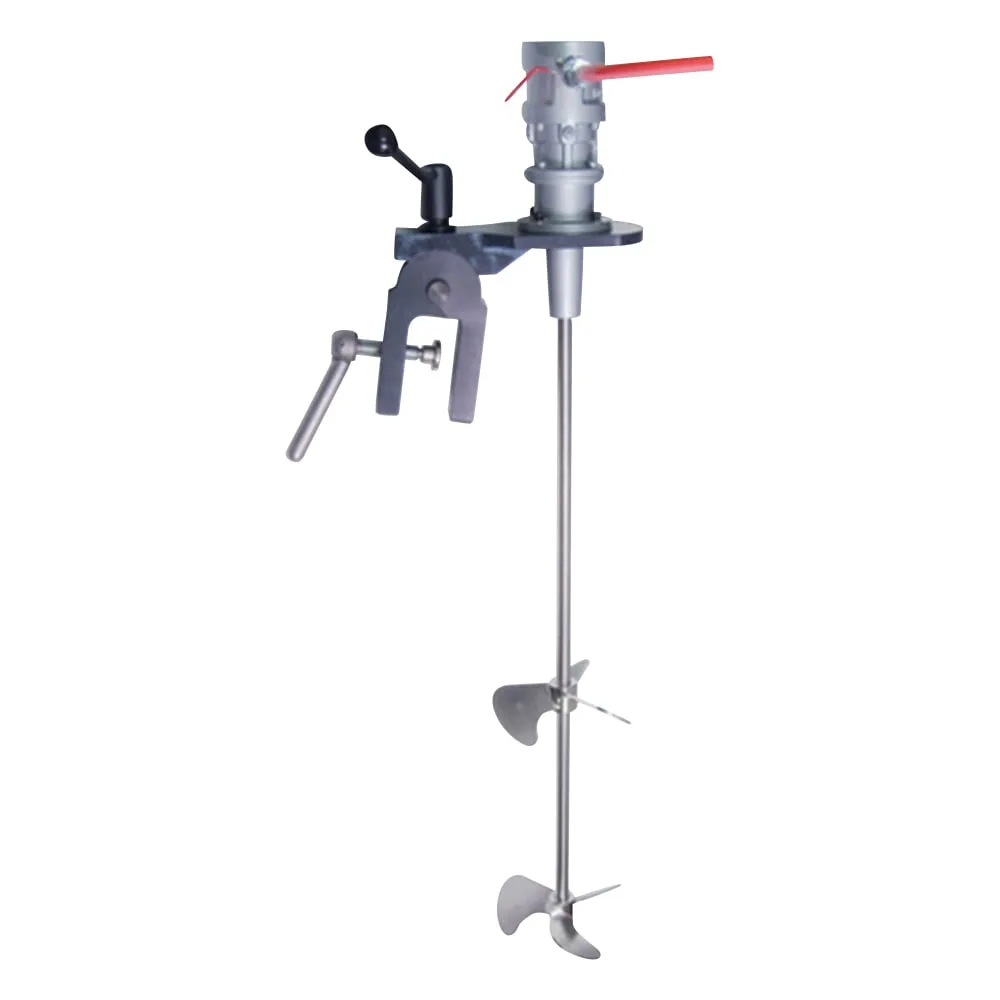

1-787-04 Air Stirrer 80 - 550rpm (Stepless) M05-600DSK
model:
1-787-04
category:
laboratoryinstruments
Product Description
Product Model: 1-787-04 Spec Model number: M05-600DSK R […]
Contact Us
Product Details
Product Model: 1-787-04
Spec
- Model number: M05-600DSK
- Rotation speed: 80 - 550rpm (stepless)
- Torque: 39.2N・m
- Shaft: φ12 x 470mm
- Propeller diameter: φ180mm
- Material: Shaft/stainless steel (SUS304), Propeller/aluminum
- With silencer, ball valve
- With fixed fittings
- Number of attached propeller: 2 sheets
- Air pressure: About 0.59MPa
- Output: 0.42kW
- Maximum waste: 0.5m3/min
- Weight: 8.3kg
- Hose diameter: φ6.5mm
- Hose joint: PT1/4
