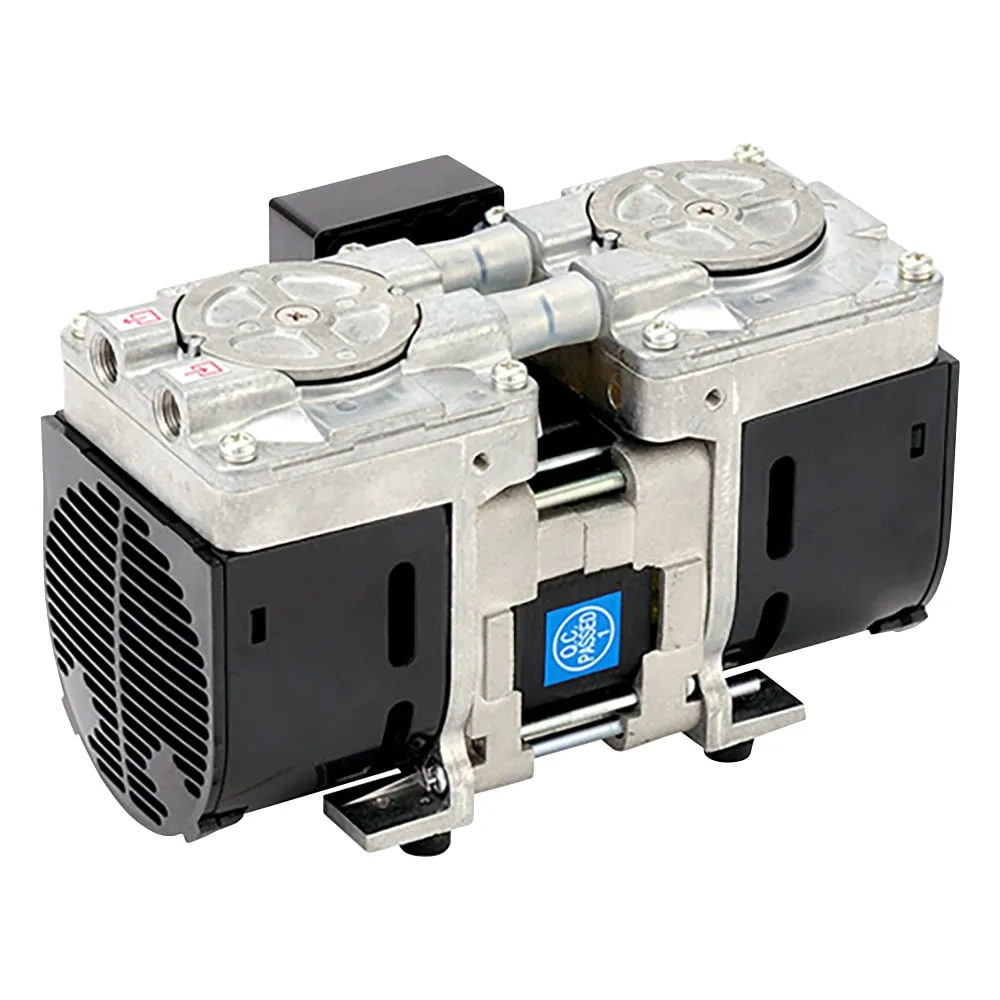

1-9197-02 Diaphragm Dry Vacuum Pump 24.0kPa DAP-12S
Product Description
Product Model: 1-9197-02Product Brand: ULVAC, Inc. Feat […]
Contact Us
Product Details
Product Model: 1-9197-02
Product Brand: ULVAC, Inc.
Features
- Since no oil is ***d, clean exhaust is possible.
- Built-in thermal protector.
Spec
- Model number: DAP-12S
- Discharge air volume: 12/14 (L/min) (50/60Hz)
- Achieving pressure: 24.0kPa
- Exhaust speed (effective) (L/min): 12/14(50/60Hz)
- Power supply: 100VAC 50/60Hz
- Power consumption: 10W
- Full load current: 0.39/0.43A (50/60Hz)
- Intake, exhaust port diameter: Rc1/8
- Size: 93 x 163 x 100.6mm
- Weight: 1.9kg
- *Inlet and exhaust pipes are not included in the package.
- RoHS3 (EU)2015/863 Certificates can be issued
