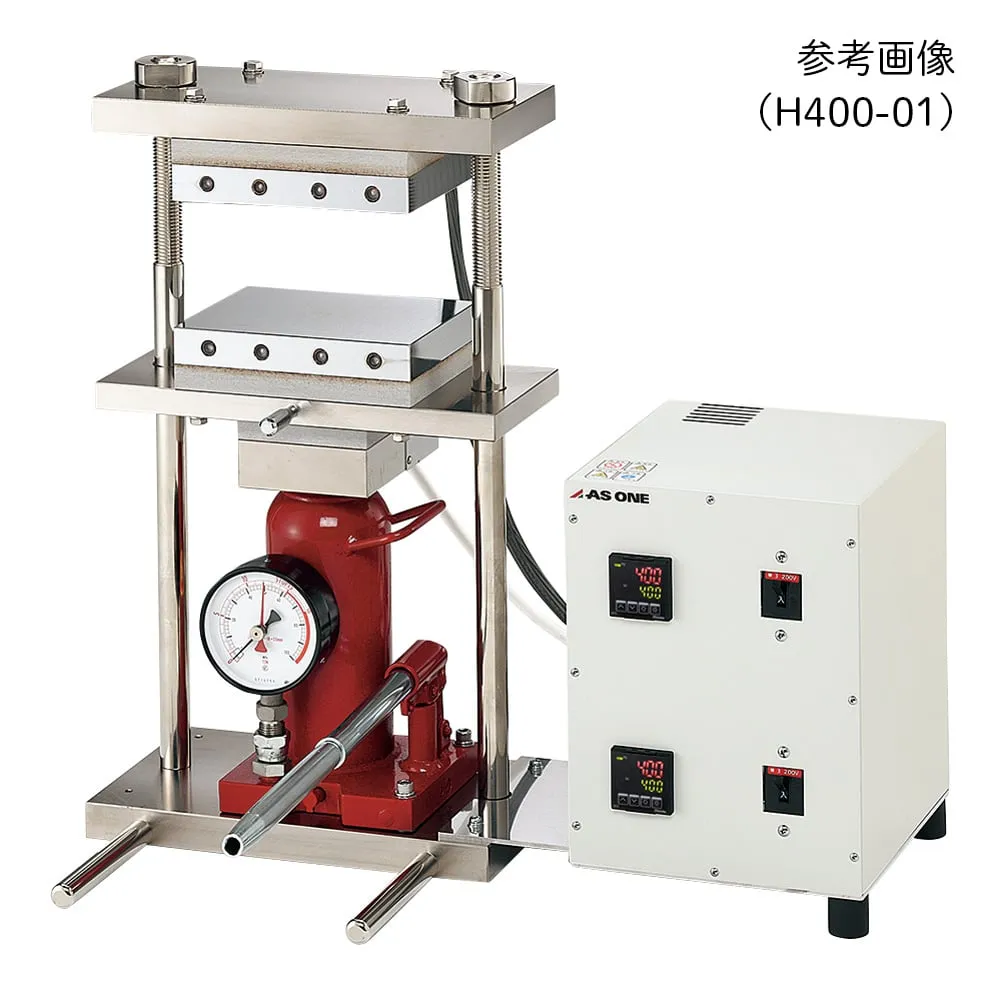

2-5178-11 High-Temperature Heat Press Machine 0 - 1T H400-01
Product Description
Product Model: 2-5178-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 2-5178-11
Product Brand: AS ONE Corporation
Features
- Compared to conventional machines, it can be heat-pressed at high temperatures (up to 400°C), so it can be ***d for a wide range of applications, including heat-compression molding.
- Resin sheets and molded samples can be produced.
- Optional thermal press molds (1-6002-11~) are available.
- Since it is operated by hydraulic pressure, it can be weighted easily.
- The pressure gauge is a two-needle retention type, so you can check the weighted pressure.
Spec
- Model number: H400-01
- Weighted (t): 0 - 1
- Size (mm): 625 x 460 x 500
- Weight (kg): Approx 70
- Hot plate size: 200 x 150mm
- Hot plate stroke: 0 - 90mm
- Heating temperature: R.T. +20 - 400℃
- Heater capacity: 1150W/heating plate x 2
- Temperature adjustment: PID type
- Pressure gauge: With left needle, analog display
- Power supply: AC200V 50/60Hz
- Power cord length: 2.5m
- Plug shape: Without plug
- *it cannot hold pressure for long hours.
- *Pressure is recomm***ed for *** in 50% or more of the largest value.
*This product might require extra fees.
