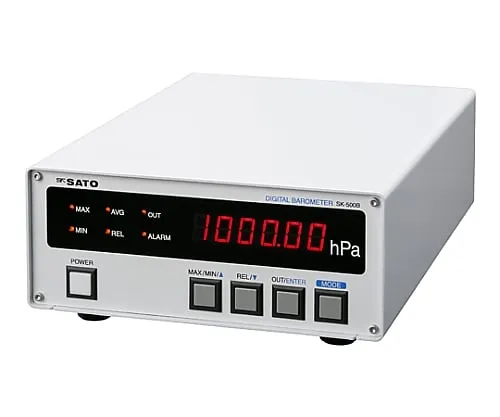

61-9438-06 Digital Barometer Calibration Report And Calibration Certificate SK-500B
Product Description
Product Model: 61-9438-06Product Brand: Sato Keiryoki M […]
Contact Us
Product Details
Product Model: 61-9438-06
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features
- * Please let us know the address on the certificate.
- A tabletop precision grade digital barometer that replaces the Fortan mercury barometer
- Measured barometric pressure over a wide measurement range of 600~1100 hPa and high resolution display at 0.01 hPa
- Highly visible red LED display
- Plenty of arithmetic display functions
- Upper and lower alarm functions
- Standard contact output for connecting external alarm devices such as buzzers and rotary lights
- Allows you to individually set the upper and lower alarm values
- Pressure port, RS-232C, printer output standard * Data can be recorded in real time by connecting to a printer (optional)
Spec
- Calibration point: Pressure 1040, 1000, 960, 920, 880hpa
- Contents of calibration documents: Calibration report, calibration certificate
- Measurement range: 600.00 - 1100.00hPa
- Resolution: 0.01hPa
- Measurement accuracy: ±0.50hpa (700.00 - 1100.00hPa, 10 - 40℃)±1.00hpa (other than the above-mentioned)
- Measurement sampling: Approximately 1 second
- Pressure sensor: Piezoelectric resistance method pressure sensor
- Display function: 7 segments red color LED (6 digits), Status display red color LED
- Usage environment conditions: -10℃ - 50℃, 85%rh or less (however, no condensation)
- Power supply: AC adaptor input: AC 100 - 240V, 50/60Hz
- Output: DC9V/660mA
- Material: Body/general structural rolled steel (SPCC), Display/acrylic resin, Pressure port/Stainless Steel (SUS304)
- Dimensions: About (W) 200 x (H) 90 x (D) 280mm (excluding projections)
- Mass: Approx 3.0 kg
- Accessories: Instruction manual 1 volume, AC adapter 1 piece, RS-232C connection cable 1 piece, USB serial cable (USB driver CD-ROM with) 1 volume
