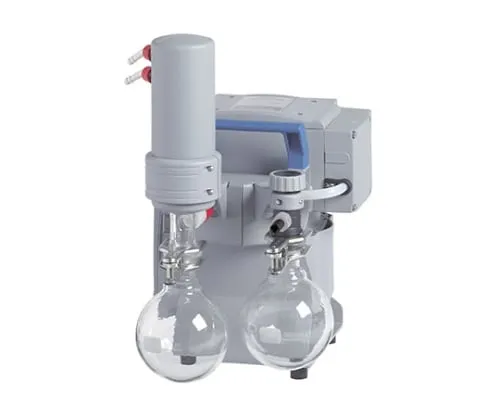

61-4374-58 Chemical-Resistant Diaphragm Vacuum Pump (Solvent Recovery Type) MZ2CNTAKEK
Product Description
Product Model: 61-4374-58Product Brand: Vacuubrand Feat […]
Contact Us
Product Details
Product Model: 61-4374-58
Product Brand: Vacuubrand
Features
- The gas contact part of the mounted pump is a chemical resistant type of fluororesin.
- The diaphragm does not come in contact with the pump head. The structure reduces noise and vibration.
- It has a condenser that efficiently liquifies and recovers exhaust solvent under atmospheric pressure.
- The AK synchro type can simultaneously reduce the pressure of two evaporators with built-in check valves, and can adjust the exhaust speed individually with needle valves.
Spec
- Achieving vacuum degree: 7hPa (5Torr) (with gas ballast closed)
- Exhaust speed: 33/38 liters/min (50/60Hz)
- Intake, exhaust port nozzle outer diameter: φ10 mm
- Intake and exhaust side receiving flask capacity: 500ml (with coat)
- Number of vacuum pump stages: 2 stages
- Rotating speed of vacuum pump: 50Hz/1500rpm, 60Hz/1800rpm
- Protection grade of vacuum pump: IP42
- Power supply: AC100 - 120V 50/60Hz
- Power cord length: 2m (3P plug)
- Size: 243 x 326 x 402mm
- Weight: 14.2kg
