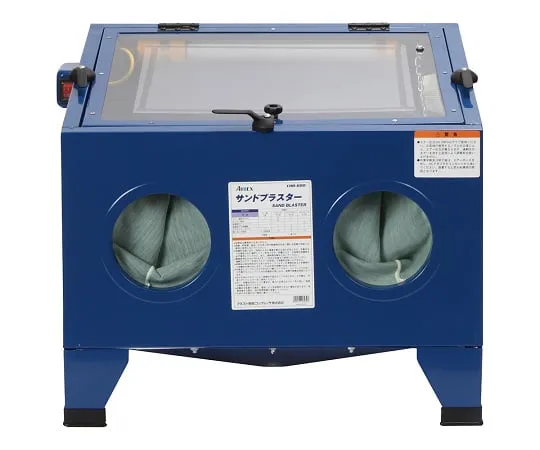

3-7072-01 Sandbraster Main Unit CHB-600B
Product Description
Product Model: 3-7072-01Product Brand: ANEST IWATA Corp […]
Contact Us
Product Details
Product Model: 3-7072-01
Product Brand: ANEST IWATA Corporation
Features
- This is a circulating type that collects the abrasive sprayed by the cabinet type and sprays it again.
Spec
- Model number: CHB-600
- Specification: Body
- nozzle diameter: φ 2.7 ・ φ 3.2 ・ φ 3.6mm
- Maximum working pressure: 0.7 MPa
- Air consumption: 70 to 140L/min
- Size: 500 x 660 x 510mm
- Inner size: 470 x 580 x 280mm
- Hopper capacity: 6 to 10kg
- Air hose connection: PT 1/4
- Power supply: AC100V 50/60Hz
- Accessories: Blastsun, Nozzle (3 kinds), Grove, Protective Sheet
- * A separate air compressor is required (Recomm***ed Air Compressor 3 -6109 - 02).
