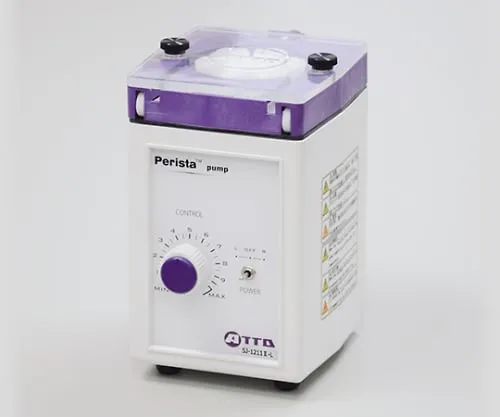

61-3734-03 Perista(TM) Tubing Pump, 2 Flow Channels, SJ-1211Ⅱ-L2 1221312/SJ-1211Ⅱ-L2
Product Description
Product Model: 61-3734-03Product Brand: ATTO CORPORATIO […]
Contact Us
Product Details
Product Model: 61-3734-03
Product Brand: ATTO CORPORATION
Features
- Perista Pump is a registered trademark of ATTO.
- It is possible to select and expand from 1 channel type to 4 channel type.
- 0.7~100 mL/h per channel (Uses 1~3 mm inner diameter and 1 mm thick silicon tube).
Spec
- Liquid feed count: 2 flow channels
- Liquid feed amount: 0.7 - 100mL/h per 1 channel (using tube of inner diameter φ1 - φ3mm)
- Flow rate variable range: 1 - 30 times
- Flow rate accuracy: Repeat accuracy within ±1%
- Maximum (discharge, suction) pressure: Discharge 205.9kPa (2.1kg/?)/suction 9.8kPa (0.1kg/?)
- Head/correspondence clay: 21m at most/1.5Pa・s (1500cP) at most
- Environment temperature: 0 - 40℃
- Motor: AC induction motor
- Drive circuit: Constant rotation automatic control circuit
- Power supply, power consumption: AC100V 50/60Hz, 11VA (0.8VA/channel)
- Dimensions, weight: 1 channel type: 110mm (W) x 150mm (D) x 180mm (H) 2.1kg (0.25kg/channel)
