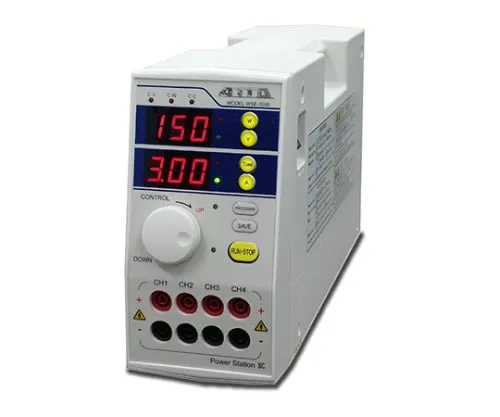

61-3733-82 High-Performance High Current Type Power Supply System Power Station HC 2311124/WSE-3500
Product Description
Product Model: 61-3733-82Product Brand: ATTO CORPORATIO […]
Contact Us
Product Details
Product Model: 61-3733-82
Product Brand: ATTO CORPORATION
Features
- Output settings: ~150 V, ~3 A, ~200 W. Programmable output settings: Free: 21 files, Chain: 10 files. Output conditions such as blotting are input (preset). Original output conditions can be saved (memory). Large Dial
- Reliable Accuracy, Stability, and Safety Functions
- Performance, Function, and Price = Reasonable
- Easy-to-read display Large LED and 2-level display
Spec
- Output: Voltage: 5 - 150V (display 0 -)(maximum 200W)
- Current: 0 - 3.00A (display 0 -)(maximum 200W)
- Power: 0 - 200W (display 0 -)
- Settings: Voltage: 10 - 150V 1V step
- Current: 0.01 - 3.00A 10mA step
- Power: 1 - 200W 1W step
- Output terminal: 4 sets parallel output
- Timer: 1 - 999min, Continuous 1 min step countdown
- Control function: Constant voltage, current, power crossover
- Control unit: Display: 7 seg LED 3 digits x 2 columns
- Settings: Large dial
- External control: No
- Alarm output: Electron buzzer key input (1 time), Error occurrence (1 time), When time is up, (5 times)
- Output accuracy: Voltage: 10V - 150V ±3% + 5digits to settings
- Display precision: Voltage: Display value within ± (0.2% ofrdg + 5 digits)
- Current: Display value within ± (0.5% ofrdg + 5 digits)
- Power: Display value within ± (0.5% ofrdg + 5 digits)
- Condition memory: Preset: 30 files P01 - P30
- Free: 21 files U00 - U20, 10 files C01-C10 (chain file)
- Safety mechanism Output short detection: Short-circuit current (short)
- Leak detection: Leakage current to ground (leak)
- Open detection: Load release (open)
- Arc detection: Discharge state (arc)
- Input high voltage detection: Input voltage 265V or more
- Fan stop detection: Fan failure
- Internal temperature detection: Equipment internal temperature rise
- Electrostatic countermeasures: After power returns, Automatic return to the state before power failure
- Cooling method: Forced air cooling by the built-in fan
- Usage environment operating ambient temperature: 0℃ to +40℃
- Operating ambient humidity: 20 - 90% RH (no condensation)
- Input voltage: AC85 - 264V
- Frequency: 47 - 66Hz
- Power consumption: 300W or less
- Safety standards Electric appliance safety law compliance
- Material: Case ABS
- Dimensions: 96(W)x325(D)x195(H)mm
- Mass: 2.4kg
