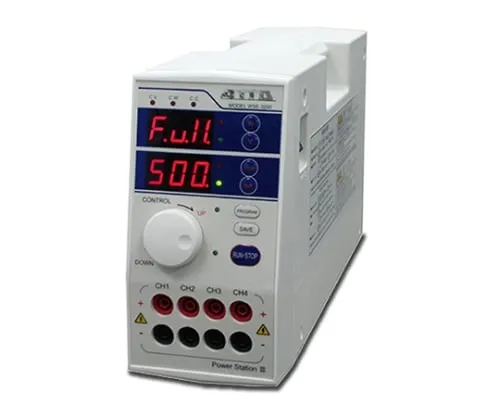

61-3733-81 High-Performance General-Purpose Power Supply Power Station III 2311145/WSE-3200
Product Description
Product Model: 61-3733-81Product Brand: ATTO CORPORATIO […]
Contact Us
Product Details
Product Model: 61-3733-81
Product Brand: ATTO CORPORATION
Features
- ~1000 V, ~500 mA, ~200 W Output Configurable
- Programmable Output Settings Free: 21 Files, Chain: 10 Files
- Electrophoresis and other output conditions have been input (preset)
- Original output conditions can be stored (memory)
- Easy-to-set large dial
- Reliable accuracy, stability, and safety functions
- Performance, function, and price = Reasonable
- Easy-to-read display Large LED/2-level display
Spec
- Output: Voltage: 10 - 1000V (display 1000 = full) (maximum 200W)
- Current: 0 - 500mA (display 0 -)(maximum 200W)
- Power: 0 - 200W (display 0 -)
- Settings: Voltage: 10 - 1000V 1V step
- Current: 1 - 500mA 1mA step
- Power: 1 - 200W 1W step
- Output terminal: 4 sets parallel output
- Timer: 1 - 999min, Continuous 1 min step countdown
- Control function: Constant voltage, current, power crossover
- Control unit: Display 7 seg LED 3 digits x 2 columns
- Setting large dial
- Alarm output: Electron buzzer key input (1 time), Error occurrence (1 time), When time is up, (5 times)
- Output accuracy: 10 - 50V or less ±1.5V to voltage settings
- 51V - 150V ±3% + 5digits to settings
- 151V - 1000V ±2% + 5digits to settings
- Display precision: Voltage: Display value within ± (0.2% ofrdg + 5 digits)
- Current: Display value within ± (0.5% ofrdg + 5 digits)
- Power: Display value within ± (0.5% ofrdg + 5 digits)
- Condition memory: Preset: 23 files P01 - P23
- Free: 21 files U00 - U20, 10 files C01-C10 (chain file)
- Safety mechanism Output short detection: Short-circuit current (short)
- Leak detection: Leakage current to ground (leak)
- Open detection: Load release (open)
- Arc detection: Discharge state (arc)
- Input high voltage detection: Input voltage 265V or more
- Fan stop detection: Fan failure
- Internal temperature detection: Equipment internal temperature rise
- Electrostatic countermeasures: After power returns, Automatic return to the state before power failure
- Cooling method: Forced air cooling by the built-in fan
- Usage environments: Operating ambient temperature 0℃ - 40℃
- Operating ambient humidity: 20 - 90% RH (no condensation)
- Input voltage: AC85 - 264V
- Frequency: 47 - 66Hz
- Power consumption: 300W or less
- Safety standards Electric appliance safety law compliance
- Material: Case ABS
- Dimensions: 96(W)x325(D)x195(H)mm
- Mass: 2.2k
