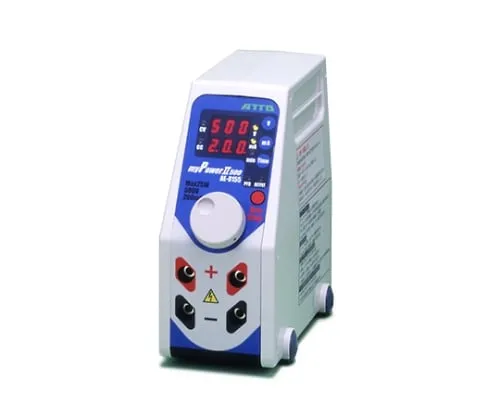

61-3733-79 Small Power Supply My Power Ii500 2311185/AE-8155
Product Description
Product Model: 61-3733-79Product Brand: ATTO CORPORATIO […]
Contact Us
Product Details
Product Model: 61-3733-79
Product Brand: ATTO CORPORATION
Features
- Large rotary dial (rotary encoder)
- "Easy operation" and "easy to see" with slope panel
- Voltage (V) display and current (mA)/time (min) display changeover voltage (V) display and current (mA)/time (min) display changeover
- One unit per person "Small size, light weight and low price"
- Space-saving 74 mm wide x 170 mm deep x 170 mm high
- Only 740 g light to hold in one hand
- Performance, function and price = Reasonable
- Available again without price change!
- Solid Performance with Simple Functions
- Current, Voltage, Timer Settings + Safety Functions + Power Outage Recovery Function
- Melody Alarm Equipped! Allows you to select an alarm sound or song
Spec
- Function: Constant voltage/constant current/crossover
- Circuit configuration: High-frequency switching, Crossover system
- Output: Voltage: 1 - 500V (max. 25W)
- Current: 1 - 200mA (max. 25W) (available 0mA to output depending on setting)
- Settings: Rotary encoder input
- Voltage: 1 - 500V (1V step)
- Current: 1 - 200mA (1mA step)
- Timer: 1 - 999 minutes (1 minute step), Available continuous output, Alarm at the end (available music selection)
- Display: Voltage, current, timer: LED 3 digits
- Voltage, current, timer, Control mode, Output: Status display (lamp lighting)
- Accuracy: Voltage, current display value ± (1% FS ±1 digit)
- Safety mechanism Output short, output open, Output blocking at detection function, Err display
- Power failure detection function: Automatic power return (when using timer), LED flashing when power returns
- Output terminal: Parallel 2 sets
- Power supply: AC100 - 115V 50/60Hz 40VA
- Dimensions, mass: 74 (W) x 170 (D) x 170mm (H), 0.74kg (body only)
- Standard components: My power II Body, AC cord (3p plug), Instruction manual:
