Spec

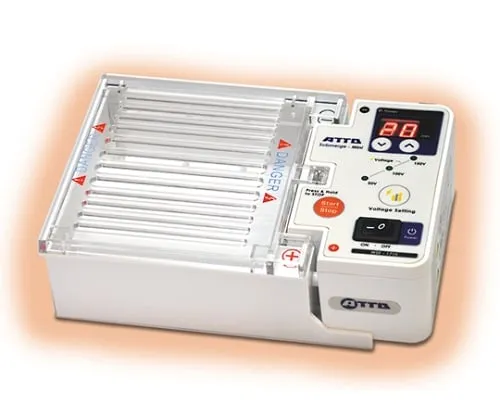

• Electrophoresis method: Submarine system (buffer solution gel dip electrophoretic system) horizontal type
• Gel tray size: S: 54mm (W) x 60mm (L), L: 110mm (W) x 60mm (L)
• Sample comb: Well width 3mm/5.8mm double-edged type, 1mm thickness, Multi pipet interval correspondence (L22 test samples), S: 9 sample x 2/5 sample x 2, L: 22 sample/12 sample
• Gel preparing method: Gel preparing box system
• Buffer solution capacity: 200 - 230mL (change by gel thickness, tray number)
• Power: Input AC100 - 120V 50/60Hz
• Output 50V/DC100V/DC150V 40W
• Timer: 1 -99 minutes (0 minute: free), Remaining time display alarm at the end
• Display: LED (hour min, Ed at the end, No cover E1, E3, No buffer E5, Overcurrent E7)
• Safety mechanism:
• Output pauses when the cover is removed during electrophoresis (E1 display, Alarm)
• Output stops when there is no cover at the start (E3 display, Alarm)
• Output stops when there is no buffer (E5 display, Alarm)
• Output stops when there is overcurrent (E7 display, Alarm)
• Fuse
• Main materials: Gel tray: Heat resistance property, Ultraviolet rays permeability type resin body other: PP, PC
• Body dimensions, mass: 190mm (W) x130mm (D) 60mm (H) (not including AC cords) 0.45kg
• Standard components: Electrophoresis tank body (power part, Electrophoresis tank part, Safety cover) gel preparing machine S (gel tray 4 pieces, Sample comb 2 pieces), Gel preparing machine L (gel tray 2 pieces, Sample comb 2 pieces), AC cord, Instruction manual:
