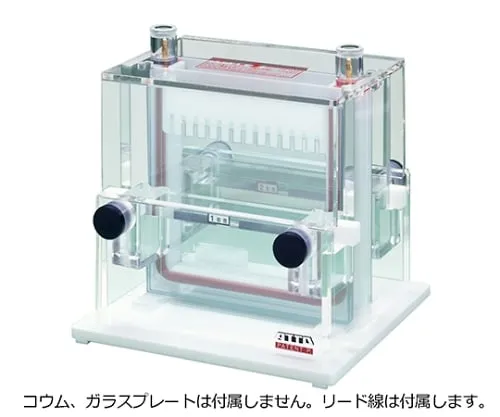

61-3733-69 Polyacrylamide Gel Electrophoresis Vessel Lapidus 2 Slab 2392990/AE-6220
Product Description
Product Model: 61-3733-69Product Brand: ATTO CORPORATIO […]
Contact Us
Product Details
Product Model: 61-3733-69
Product Brand: ATTO CORPORATION
Features
- Up to 2 sheets can be electrophoresed at the same time
- Standard size of gel 13 x 13.8 cm
- Front open structure for easy sample application
- Simple gel plate setting press pressure type "Plate holder"
- Thick acrylic material for secure RI blocking effect
- "Desmiling" with constant temperature on the back of the plate
Spec
- Correspondence electrophoretic plate: 160mm (W) x 160mm (L), Total 10.5 - 12mm thickness RAB-0.75, 01, 02/RB-00
- Gel size: 138mm (W) x 130mm (H) x 1mm (D) (standard) 0.75 - 2mm (D)
- Number of simultaneous electrophoresis gels: Maximum 2 sheets
- Plate installing system: Plate holder pressing pressure type
- Plate constant temperature system: Back-sided constant temperature by upper buffer solution
- Buffer solution capacity: Top 480mL bottom 450mL
- Electrophoresis tank polarity: Select when a power unit is connected
- Safety measures: Safety cover with lead wire
- Main materials: Acrylic, Silicone
- Body dimensions, mass: 211mm (W) x 196mm (D) x 205mm (H) (excluding projections) 2.3kg
- Standard components: Body 1 set (electrophoresis tank, Plate holder 2 pieces, Safety cover with lead wire), Dummy plate, Instruction manual:
