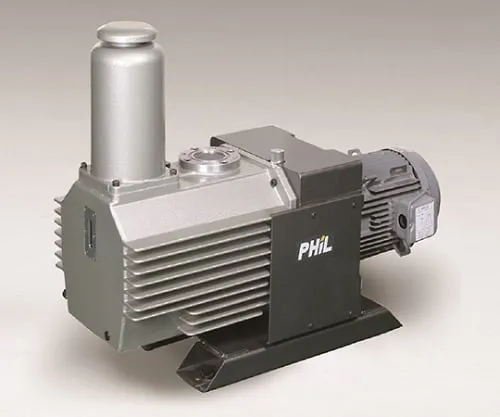

61-3613-43 Direct-Coupled Oil-Sealed Rotary Vacuum Pump Dw-1500c AC200V Three-Phase 50/60Hz DW-1500C
Product Description
Product Model: 61-3613-43Product Brand: SATO VAC INC. F […]
Contact Us
Product Details
Product Model: 61-3613-43
Product Brand: SATO VAC INC.
Features
- Clean S Processing
- This is a Gede type rotary blade type oil rotary vacuum pump.
- Since it is a direct motor type which is operated at high rotation, it is a vacuum pump which is more compact and provides a larger exhaust speed than a belt drive type.
- With a lineup of 7 models up to an exhaust speed of 50~1300 (60~1500) L/min, it is possible to select the model according to the specifications (60 Hz).
- In addition, a two-stage rotor compression system provides higher vacuum operation.
Spec
- Exhaust speed (L/m) (50Hz/60Hz): 1300/1500
- Ultimate pressure (Pa): 6.7 x 10^-2
- Electric machine output (W): 2200
- Voltage (V): 3φ 200
- Rotating speed (min^-1): 50hz 1460 60hz 1755
- Oil amount: 7
- Intake system: VG-50A
- Mass (kg): 115
- Dimensions (W x D x H) 827mm x 312mm x 626mm
*This product might require extra fees.
