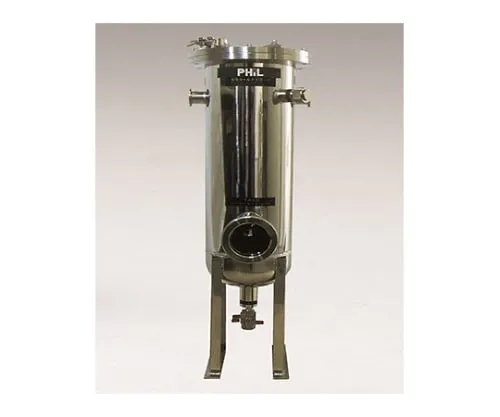

61-3613-25 Cold Trap (Connection NW25) CT-1650W-25A
Product Description
Product Model: 61-3613-25Product Brand: SATO VAC INC. F […]
Contact Us
Product Details
Product Model: 61-3613-25
Product Brand: SATO VAC INC.
Features
- Traps are ***d to prevent gases such as moisture and solvents from the vacuum chamber from being trapped in the cooling section and reaching the vacuum pump when passing through the unit.
- Cool with dry ice, cooling water (ice), or a handy cooler, dep***ing on the purpose, application, site conditions, etc.
- In addition, gauge ports for vacuum gauges and service ports are provided as standard equipment, making this trap inexpensive and easy to ***.
Spec
- System: Cooling type Fin type
- External dimensions: φ225 x H700mm (Partial protrusion not included)
- Trap chamber: Stainless steel SUS304 made, dimension φ165 x H500mm, drain port valve SUS304, ball valve 1/2B, intake connection port IN apparatus side NW25, intake connection port OUT pump side NW25
- Liquid level gauge: Monitoring window round shape φ70 strengthened glass
- Gauge port: 15φ port for vacuum gage (Viton packing)
- Service port: NW25 flange (mekura buta, Center ring, With aluminum clamp) 1 piece
- Cooling: Dry ices, Cooling water (ice) or handy cooler TRL-117ST PHIL (AC200V three phase)
- Other: Option (1) Vacuum gage 0 - 0.1MPa φ600mm (Part in contact with gas Stanless steel (SUS304)) 1 piece (2) Clasp for cooling water 1/4 PS socket IN, OUT
*This product might require extra fees.
