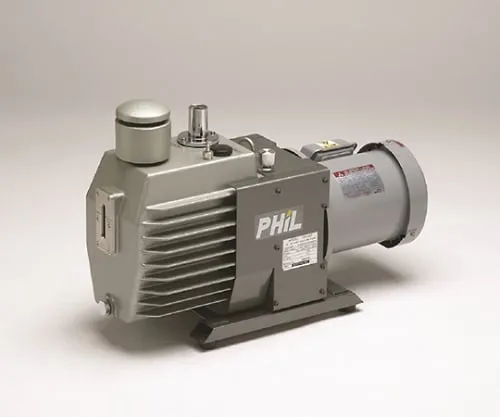

61-3612-36 Direct-Coupled Oil-Sealed Rotary Vacuum Pump AC200V Three-Phase 50/60Hz DW-360
Product Description
Product Model: 61-3612-36Product Brand: SATO VAC INC. F […]
Contact Us
Product Details
Product Model: 61-3612-36
Product Brand: SATO VAC INC.
Features
- A Goede type rotary blade type oil rotary vacuum pump.
- Since it is a direct motor type which is operated at high rotation, it is a vacuum pump which is more compact and provides a larger exhaust speed than a belt drive type.
- With a lineup of 7 models up to an exhaust speed of 50~1300 (60~1500) L/min, it is possible to select the model according to the specifications (60 Hz).
- In addition, a two-stage rotor compression system provides higher vacuum operation.
Spec
- Exhaust speed (L/m): 50hz 600 60hz 720
- Ultimate pressure (Pa): 6.7 x 10^-2
- Electric machine output (W): 750
- Voltage (V): 3φ 200
- Rotating speed (min^-1): 50hz 1440 60hz 1730
- Oil amount: 2.2
- Intake system: 30mm
- Mass (kg): 34
- Dimensions (W x D x H) 597mm x 244mm x 358mm
*This product might require extra fees.
