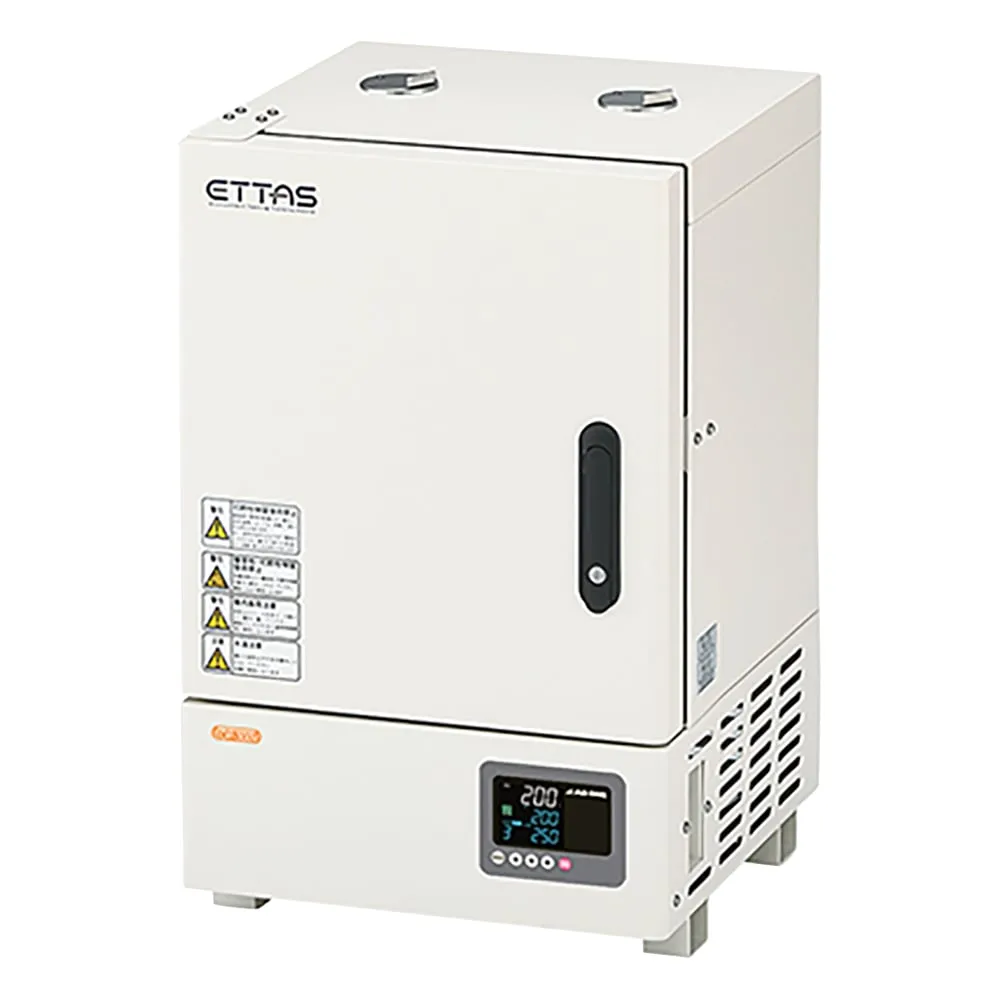

1-7478-41 Constant-Temperature Drying Oven (With Program Function, Natural Convection) 27L EOP-300V
Product Description
Product Model: 1-7478-41Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-7478-41
Product Brand: AS ONE Corporation
Features
- Uses a highly visible color LCD display for improved operability.
- In addition to the PV/SV two-stage display that makes it easy to check the measured values and the set values, the over-temperature rise prevention set temperature display is adopted.
- 8 step 4 pattern program function is equipped as standard, and you can choose from 4 types according to the quantity and size of the sample.
- The natural convection method ensures no scattering even when powder or lightweight materials are added.
- The temperature control ***s PID control, which enables stable temperature control with high accuracy.
- A security key is included.
Spec
- Model number: EOP-300 V
- capacity: 27
- Temperature control range: R.T. + 20 to 300 ° C
- Maximum temperature arrival time: about 60 minutes
- Temperature distribution width: 25 ° C (at 300 ° C)
- Temperature control system: PID control and SSR output
- Addition function: Program function of program function, natural convection type → program, air jacket natural convection type → 8 step 4 pattern
- Safety device: Indep***ent overrise prevention device (Operating temperature digital setting) and overcurrent breaker burnout mechanism (heater off when sensor disconnects)
- Heater capacity: 1000 W
- Temperature sensor / overheating prevention sensor: K class thermocouple
- inner size: 300 x 300 x 300 mm
- Shelf pitch number of step: 35 mm 7 stages
- Exterior / Interior: Steel powder coating / stainless steel (SUS304)
- Outlet: φ 32 mm x 2 pieces
- external dimension: 400 x 410 x 630 mm
- Weight: About 30 kg
- power supply: AC100V 50 / 60Hz code length 2 m (3P Plug)
- rated current: 10.5 A
- shelf board Load tolerance: 15 kg
- Accessories: 2 shelf board 2 pieces shelf board rails
