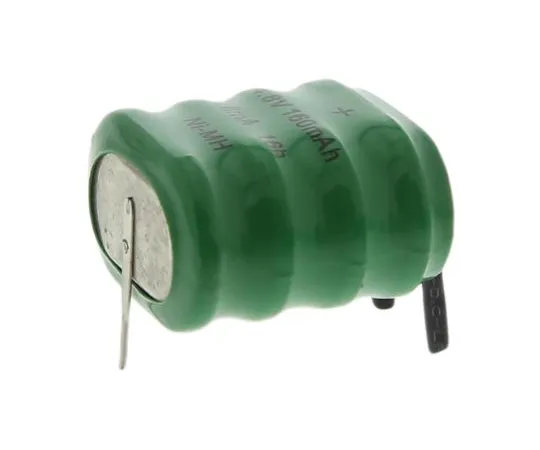

63-4639-32 RS PRO 4.8V NiMH Button Rechargeable Battery, 160mAh 525-811
Product Description
Product Model: 63-4639-32Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4639-32
Product Brand: RS PRO
Features
- Rechargeable Ni-MH Button Cells
- Rechargeable Ni-MH Button Cells are widely used for communication, Siren, Small intelligent household application, instrument and Various IC Circuit.,CELL AND TYPE, Cell:Sealed Ni-MH Button Cell
- Never short-circuit or reverse polarity in application Avoid throwing cells into a fire or attempting to disassemble them
- This is not safety:use the cell without the specified working temperature range, charge and discharge with more than our specified current
- Do not mix batteries with metal objects during storage or transportation to avoid accidental short-circuit Button type Normal Charging, Standard charge:0.1C for 16h Temperature range for operation (Humidity:65% ±20%,mAx.85%) Standard charge 0→+35°C Rapid charge +10→+35°C Trickle charge 0→+35°C Discharge -10→+35°C Temperature range for storage (Humidity:65% ±20%,mAx.85%) Within 2 years -20→+35°C, Within 6 months -20→+45°C, Within a month -20→+50°C, Within a week -20→+55°C
Spec
- Nominal Voltage:4.8V
- Capacity:160mAh
- Chemistry:NiMH
- Terminal Type:PCB Pin
- Mounting Orientation:Vertical
- Operating Temperature Range:-20 → +35°C
- CODE No.:525-811
