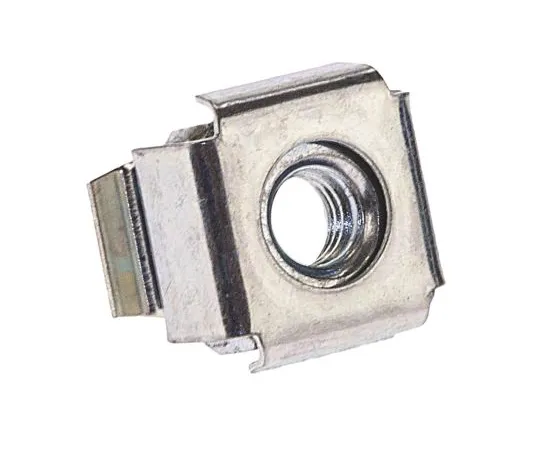

63-4639-11 Steel RS PRO M5 Cage Nut 523-115
Product Description
Product Model: 63-4639-11Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4639-11
Product Brand: RS PRO
Features
- Cage Nuts
- Cage nuts with square steel nuts in spring steel cages are suitable for mounting in standard 9.5 mm square cutouts.
- Galvanized Steel and Spring Steel Structure Panel Size M5 and M6 according to the thickness range. Type N is ***d when the material thickness is 0.71→1.63 mm (22→16 swg), and Type W is ***d when the material thickness is 1.83→2.64 mm (15→12 swg).
Spec
- Thread Size:M5
- Overall Width:13.72mm
- Cut-Out Dimensions:9.53 x 9.53mm
- Material:Steel
- Finish:Galvanised
- Cut-Out Length:9.53mm
- Cut-Out Width:9.53mm
- For Panel Thickness Maximum:2.64mm
- For Panel Thickness Minimum:1.83mm
- CODE No.:523-115
