Spec

• Package

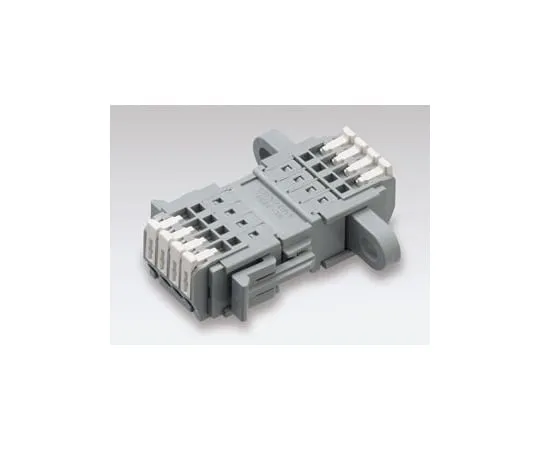

• Set of content plug receptacles
• Number of Poles 4
• Pitch between terminals 3.81 mm
• Specifications 2
• Rated DC 300 V -5 A
• Withstand voltage: 2000 V AC (1 minute)
• Insulation resistance DC 500 V, 100 Momega or more
• Total contact resistance (initial value) 30 m.OMEGA. or less
• Main insulating material
• (Main body, buttons) Nylon 66 (UL 94 V-0)
• Rated compliant single wire: phi 0.8 mm (AWG 20), twisted wire 0.50 mm 2 (AWG 20)
• Usable wire range: single wire: phi 0.4 mm to phi 1.2 mm (AWG 26 to AWG 16), twisted wire: 0.2 mm 2 ~ 1.25 mm 2 (AWG 24 to AWG 16), wire diameter phi 0.18 mm or more
• Standard stripping line length 9mm
• Operation color
• Recomm***ed Suitable Tool Slotted Screwdriver * Anything you can push a button into
• Acquired standards: UL Standard (compatible with field wiring), C-UL Standard, T & # 220; V Standard (IEC 61984)
